Features and Benefits
-
What it Powers
-
Specifications
-
FAQs
-
User Manual

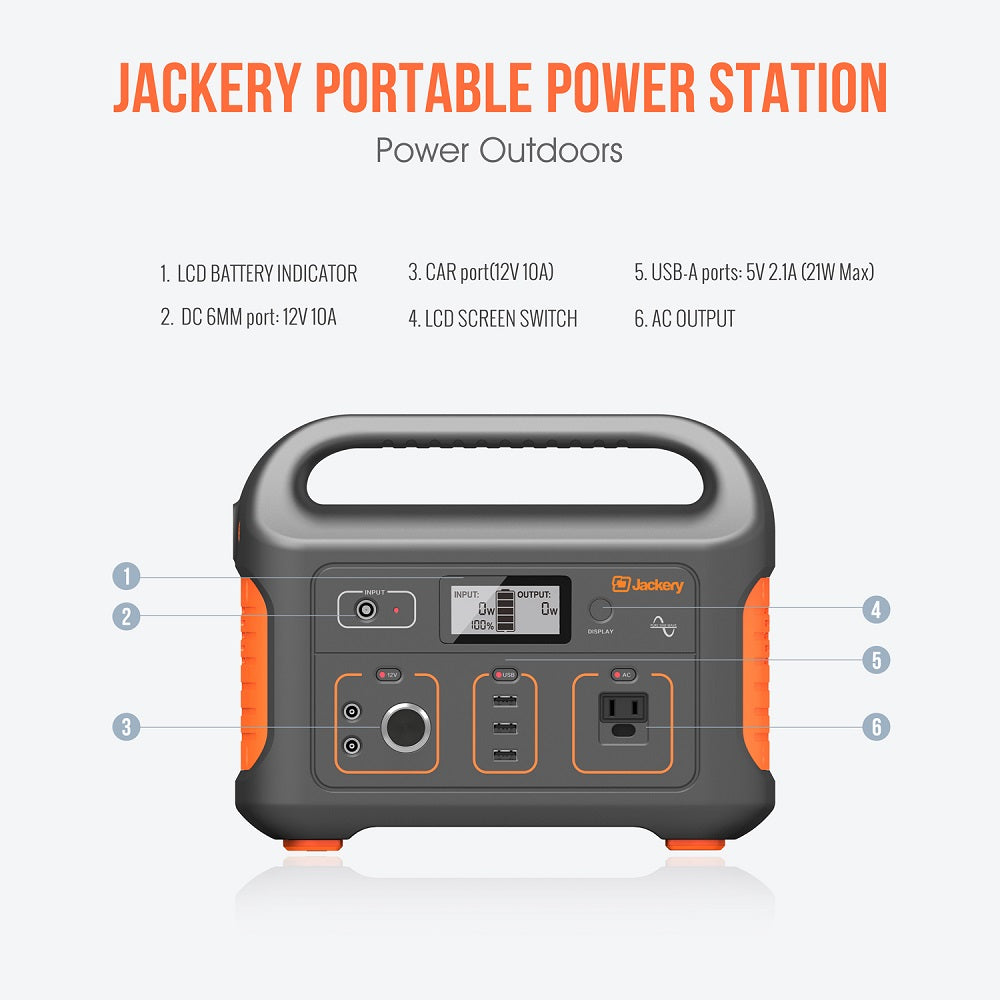

All-in-one portable power station
- Multi-output charging ports, charge most of your device at the same time
- 1* AC pure sine wave inverter outlet: 110V 60Hz 300W 500W surge
- 3* USB-A ports: 5V 2.1A (21W Max))
- 2* DC 6MM port: 12V 10A
- 1* Car port (12V 10A)
- Battery Capacity: 440Wh,122400mah
- Weight: 12.57lbs
What it Powers
Below are some of the devices you can power with your Explorer 440. Note, the devices it can power is limited to 100W Continuous, 150W Peak. This means that the rated input power of your devices should be no more than 100W. Rough calculation for run-time of your device is: 440Wh * 0.85 / rated input power of your device. Actual power consumption varies from different usages. You may consult Jackery for better purchase decision.
|
|
|
|
|
|
|
|
|
Smartphones 31+ Times |
Tablets 25+ Times |
Cameras 50+ Times |
Laptops 7+ Times |
Mini Fridges 6+ Hours |
Drones 5+ Times |
USB Small Fan 40+ Hours |
Technical Specifications
Battery Info
Peak Capacity:
Cell Chemistry:
Lifecycles:
Shelf-life:
Management System:
440Wh (21.6V, 20.4Ah) 122,400 mAh / 3.6V
Li-ion NMC
≥500 cycles to 80%
Charge every 3-6 Months
BMS, Over Voltage Protection, Short Circuit Protection

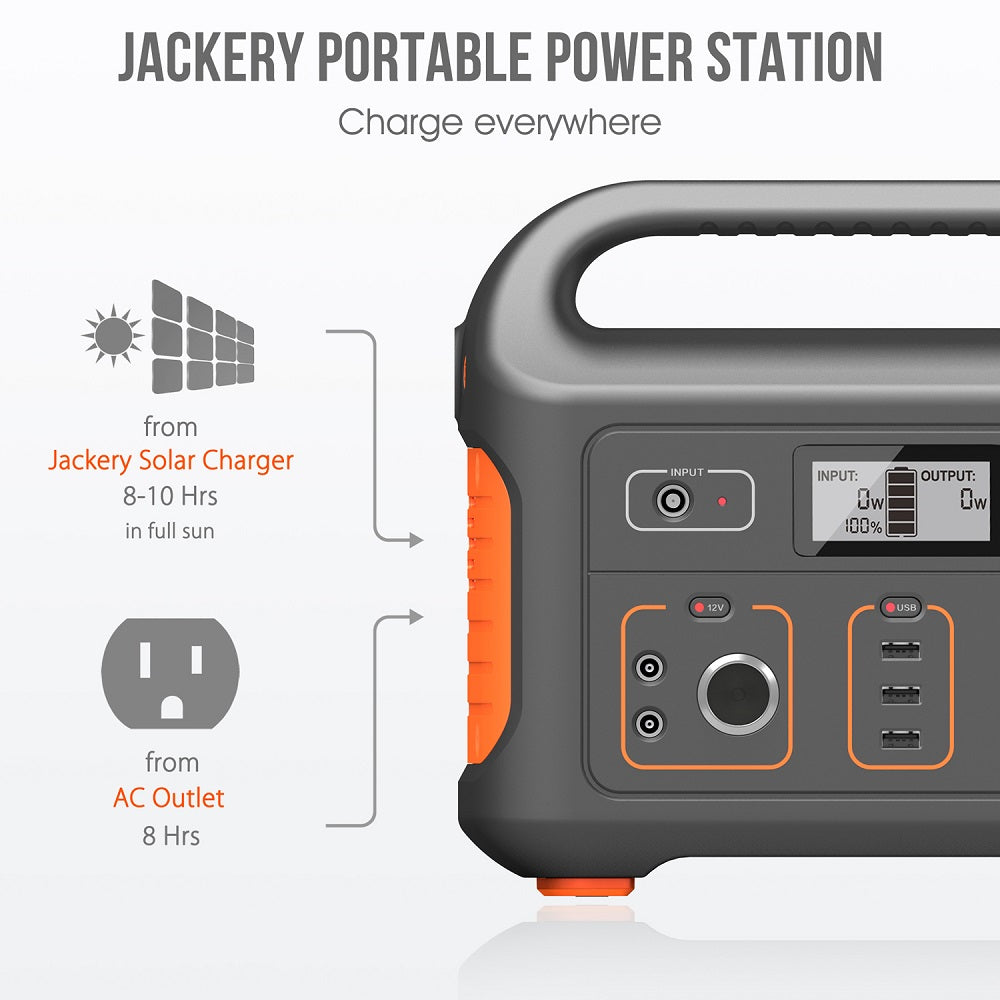

Charge Method and Times
Charge Methods:
Full Recharge Time:
AC Wall Outlet, Solar Panel (optional)
- 8 Hours (AC)
- 10 Hours (Optional 100W solar panel with Full Sun)
General Info
SKU:
UPC:
Color:
Product Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
G00440AAH
854275007437
Gray & Orange
12.6 lbs (5.7 kg)
11.8 x 9.5 x 7.6 in (30 x 24 x 19 cm)
32-104F (0-40C)
FCC, ROHS, UN38.3
2-Years
Ports
Charging Input (DC, 8mm):
DC Output (Car port):
DC Output (6mm):
USB Output:
AC Output (pure sine wave):
25.2V, 4A (100W Max)
DC 13.3V, up to 10A
12V, 10A
Three USB-A ports (5V 2.1A)
110VAC, 60Hz, 300W Continuous, 500W Max
Safety by Design
Safety by Design:
Battery management system (BMS) enables short circuit protection, voltage control, temperature control and more advanced safety operations. Other enhanced safety features includes:
- LCD screen with charge/discharge and battery life status
- Switch with indicator light for on/off output port charging
Included
In the Box:
AC Adaptor and AC cable; User Guide
Optional
Optional Accessory:
Packaging Specifications
Retail Box Size:
Master Carton Size:
Quantity per Master Carton:
Net Weight (lbs):
Gross Weight (lbs) - Master Carton:
14.37 x 10.43 x 11.81 (in)
15.16 x 11.02 x 12.80 (in)
1
TBD
TBD
Frequently Asked Questions
Can the Jackery 50W solar panel charge Explore 440?
No, the charging input of Explore 440 is 25.2V, 50W solar panel is 16.2V. You need to use the Jackery 100W solar panel to charge 440
Does the 12V on the 440 work as an input? Can I charge via 12v while driving?
No, the Explore can only be charged via 8mm input port.
Can you please tell me where in the van is the safest place to keep the unit? I heard it should avoid vibration, so should I not keep it in the back?
Actually, you can keep it anywhere you like in the van only if it kept stably.
Features and Benefits
All-in-one portable power station
Multi-output charging ports, charge most of your device at the same time
1* AC pure sine wave inverter outlet: 110V 60Hz 300W 500W surge
3* USB-A ports: 5V 2.1A (21W Max))
2* DC 6MM port: 12V 10A
1* Car port (12V 10A)
Battery Capacity: 440Wh,122400mah
Weight: 12.57lbs
What it Powers
|
|
|
|
|
|
|
|
|
Smartphones 31+ Times |
Tablets 25+ Times |
Cameras 50+ Times |
Laptops 7+ Times |
Mini Fridges 6+ Hours |
Drones 5+ Times |
USB Small Fan 40+ Hours |
Specifications
Battery Info
|
Peak Capacity: |
440Wh (21.6V, 20.4Ah) 122,400 mAh / 3.6V |
|
Cell Chemistry: |
Li-ion NMC |
|
Lifecycles: |
≥500 cycles to 80% |
|
Shelf-life: |
Charge every 3-6 Months |
|
Management System: |
BMS, Over Voltage Protection, Short Circuit Protection |
Charge Method and Times
|
Charge Methods: |
AC Wall Outlet, Solar Panel (optional) |
|
Full Recharge Time: |
|
General Info
|
SKU: |
G00440AAH |
|
UPC: |
854275007437 |
|
Color: |
Gray & Orange |
|
Product Weight: |
12.6 lbs (5.7 kg) |
|
Dimensions (LxWxD): |
11.8 x 9.5 x 7.6 in (30 x 24 x 19 cm) |
|
Operating Usage Temperature: |
32-104F (0-40C) |
|
Certification: |
FCC, ROHS, UN38.3 |
|
Warranty: |
2-Years |
Ports
|
Charging Input (DC, 8mm): |
25.2V, 4A (100W Max) |
|
DC Output (Car port): |
DC 13.3V, up to 10A |
|
DC Output (6mm): |
12V, 10A |
|
USB Output: |
Three USB-A ports (5V 2.1A) |
|
AC Output (pure sine wave): |
110VAC, 60Hz, 300W Continuous, 500W Max |
Safety by Design
|
Safety by Design: |
|
Included
|
In the Box: |
AC Adaptor and AC cable; User Guide |
Optional
|
Optional Accessory: |
Packaging Specifications
|
Retail Box Size: |
14.37 x 10.43 x 11.81 (in) |
|
Master Carton Size: |
15.16 x 11.02 x 12.80 (in) |
|
Quantity per Master Carton: |
1 |
|
Net Weight (lbs): |
TBD |
|
Gross Weight (lbs) - Master Carton: |
TBD |
--
User Manual
FAQs
Can the Jackery 50W solar panel charge Explore 440?
No, the charging input of Explore 440 is 25.2V, 50W solar panel is 16.2V. You need to use the Jackery 100W solar panel to charge 440
Does the 12V on the 440 work as an input? Can I charge via 12v while driving?
No, the Explore can only be charged via 8mm input port.
Can you please tell me where in the van is the safest place to keep the unit? I heard it should avoid vibration, so should I not keep it in the back?
Actually, you can keep it anywhere you like in the van only if it kept stably.
