- Portable solar generator:

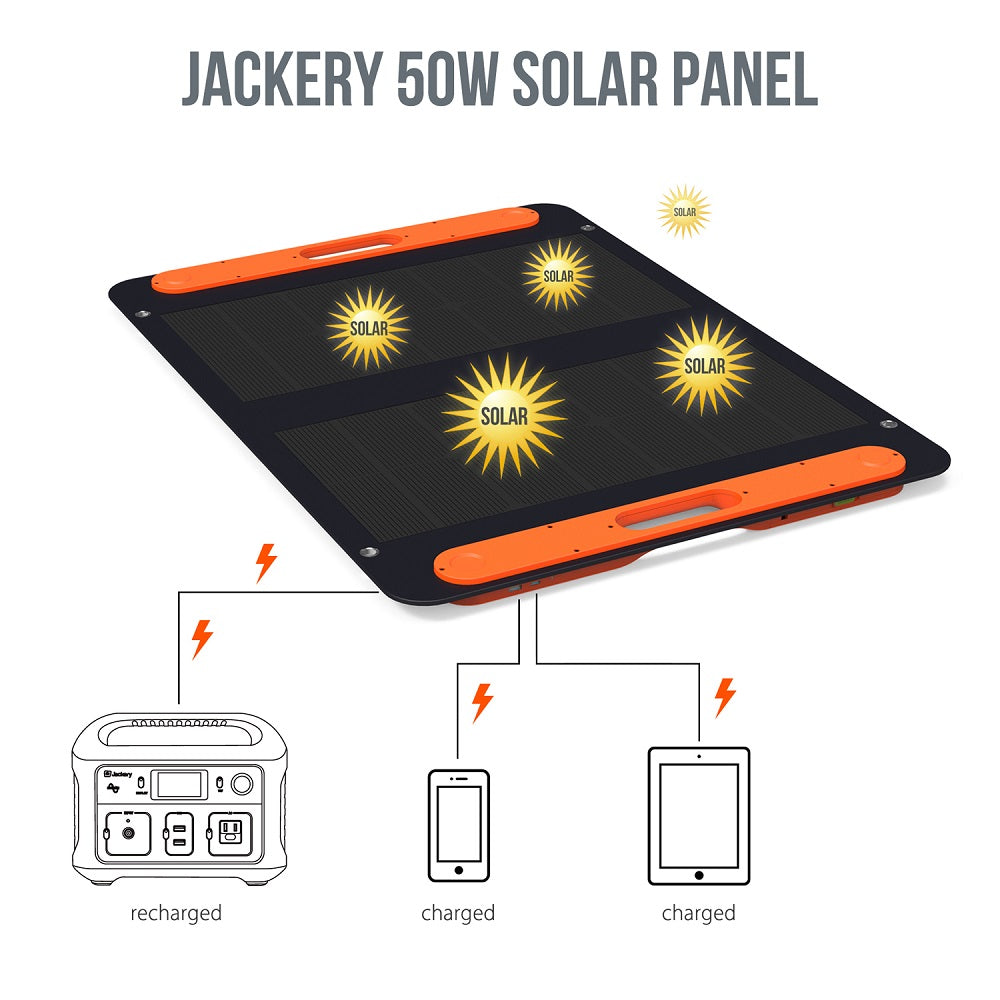

Building up a Portable-Solar-Generator System together with Jackery Explorer 240 and Explorer 160 rechargeable power station (Explorer 240/Explorer 160 sold separately). Ideally suited for the outdoor life and even unexpected power outages. - Multiple outputs for easy charging:
equipped with 1* USB-A output port (5V/2.4A) and 1*USB-C output port (5V/3A) in addition to 1* DC port (16.2V/3.15A/50W) , charging multiple portable devices at the time (Explorer 240,Phones Tablet Camera and others). - Charge everywhere, No Gasoline Required:
Recharge your Jackery Explorer on-the-go with 50W solar panel, keep your devices and appliances charged on-the-go, eco-Friendly.What's Included: 1*Jackery 50W Solar Panel, 1*3M extension cord. 24-months product warranty backed with our friendly customer service available 7×24 hrs
-
Features
-
Specifications
-
Compatibility
-
FAQ
-
User Manual
Features and Benefits
Technical Specifications
Key Specifications
Rated Power:
Cell Efficiency:
Power Voltage:
Power Current:
Open Circuit Voltage:
Short Circuit Current:
Lifecycle:
50 watts (50W)
19% to 21%
16.2V
3.15A
19V
3.4A
10+ Years
Charge Method and Times
Charge Methods:
Full Recharge Time:
Solar
- Explorer 160 - 5 Hours (with Full Sun)
- Explorer 240 - 8~10 Hours (with Full Sun)
- Honda HLS 200 - 6 Hous (with Full Sun)
- Honda HLS 290 - 10 Hours (with Full Sun)
General Info
SKU:
UPC:
Color:
Product Weight:
Dimensions - Folded (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
SP050BKH
854275007482
Orange & Black
5.4 lbs (2.46 kg)
22.2 x 15.6 x 0.5 in (56.5 x 39.5 x 1 cm)
14-104F (-10 to 40C)
FCC, ROHS
2-Years

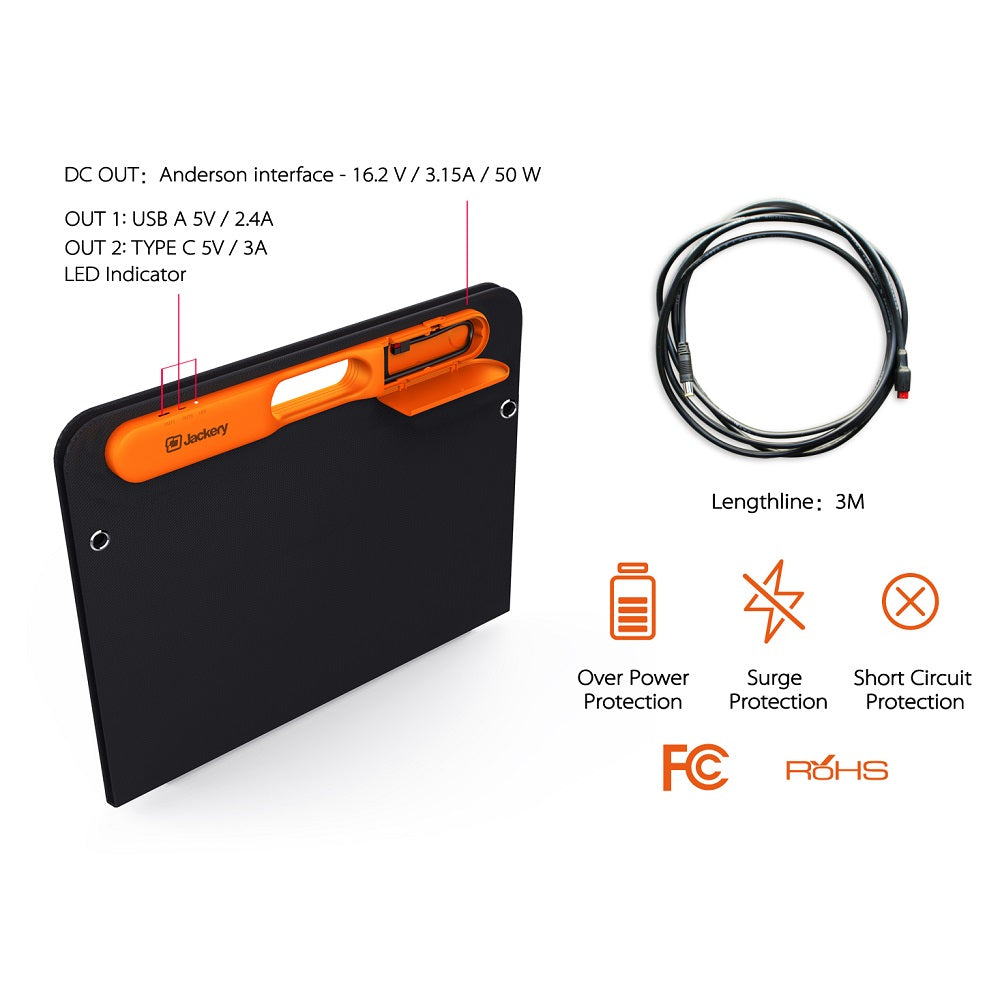

Ports
Solar Port:
USB Output:
Anderson DC, 18V
1@ 5V, 2.4A, 1@ USB-C 5V, 3A
Included
In the Box:
- Jackery 50W Solar Panel
- 3M Extension Cord
Packaging Specifications
Retail Box Size:
Master Carton Size:
Quantity per Master Carton:
Net Weight (lbs):
Gross Weight (lbs) - Master Carton:
23.43 x 3.07 x 16.73 (in)
24.41 x 6.50 x 17.52 (in)
2
11.29 lbs
TBD
California residents: WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
Compatible With:
1. Q: Can the solar panel charge cellphone and tablet?
A: Yes, the solar panel comes with a USB port outputing 5V/2.4A max, and a 5V/3A output USB Type-C port. So you can charge your iPhone, Android phone with micro-USB and type-C port.
2. Q: Are the foldable solar modules waterproof?
A: To Maximize the lifespan of the module, it should not get wet.
3. Q: What kind of battery can be charged by these solar modules?
A: 1. Jackery Explorer 160/Explorer 240
2. Sealed lead-acid battery
3. Colloidal lead-acid batteries
4. The open lead-acid batteries
4. Q: How to clean the solar surface?
A: Dust and dirt on the surface should first be removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
User Manual
Features
- Portable solar generator: building up a Portable-Solar-Generator System together with Jackery Explorer 240 and Explorer 160 rechargeable power station (Explorer 240/Explorer 160 sold separately). Ideally suited for the outdoor life and even unexpected power outages.
- Multiple outputs: equipped with 1* USB-A output port (5V/2.4A) and 1*USB-C output port (5V/3A) in addition to 1* DC port (16.2V/3.15A/50W) , charging multiple portable devices at the time (Explorer 240,Phones Tablet Camera and others).
- Charge everywhere, No Gasoline Required: Recharge your Jackery Explorer on-the-go with 50W solar panel, keep your devices and appliances charged on-the-go, eco-Friendly.What's Included: 1*Jackery 50W Solar Panel, 1*3M extension cord. 24-months product warranty backed with our friendly customer service available 7×24 hrs.
Specifications
Technical Specifications
Key Specifications
|
Rated Power: |
50 watts (50W) |
|
Cell Efficiency: |
19% to 21% |
|
Power Voltage: |
16.2V |
|
Power Current: |
3.15A |
|
Open Circuit Voltage: |
19V |
|
Short Circuit Current: |
3.4A |
|
Lifecycle: |
10+ Years |
Charge Method and Times
|
Charge Methods: |
Solar |
|
Full Recharge Time: |
|
General Info
|
SKU: |
SP050BKH |
|
UPC: |
854275007482 |
|
Color: |
Orange & Black |
|
Product Weight: |
5.4 lbs (2.46 kg) |
|
Dimensions (LxWxD): |
22.2 x 15.6 x 0.5 in (56.5 x 39.5 x 1 cm) |
|
Operating Usage Temperature: |
14-104F (-10 to 40C) |
|
Certification: |
FCC, ROHS, UN38.3 |
|
Warranty: |
2-Years |
Ports
|
Solar Port (6mm): |
Anderson DC, 18V |
|
USB Output: |
1@ 5V, 2.4A, 1@ USB-C 5V, 3A |
Included
|
In the Box: |
|
Packaging Specifications
|
Retail Box Size: |
23.43 x 3.07 x 16.73 (in) |
|
Master Carton Size: |
24.41 x 6.50 x 17.52 (in) |
|
Quantity per Master Carton: |
2 |
|
Net Weight (lbs): |
11.29 lbs |
|
Gross Weight (lbs) - Master Carton: |
TBD |
C
FAQ
1. Q: Can the solar panel charge cellphone and tablet?
A: Yes, the solar panel comes with a USB port outputing 5V/2.4A max, and a 5V/3A output USB Type-C port. So you can charge your iPhone, Android phone with micro-USB and type-C port.
2. Q: Are the foldable solar modules waterproof?
A: To Maximize the lifespan of the module, it should not get wet.
3. Q: What kind of battery can be charged by these solar modules?
A: 1. Jackery Explorer 160/Explorer 240
2. Sealed lead-acid battery
3. Colloidal lead-acid batteries
4. The open lead-acid batteries
4. Q: How to clean the solar surface?
A: Dust and dirt on the surface should first be removed using a soft brush. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
Compatibility
Compatible With
- Jackery 160 Power Station
- Jackery 240 Power Station
- Honda by Jackery 200 Power Station
- Honda by Jackery 290 Power Station
