Quick answer: The Jackery HomePower 3600 Plus with Battery Pack 3600 provides 7,168Wh of combined battery capacity and can support a 240V setup when two compatible power stations are connected in parallel. The EcoFlow TITAN 5000 Classic offers 5,017.6Wh of capacity per unit and higher rated output. However, the EcoFlow TITAN 5000 Classic itself supports 120V output only.
Key Takeaways
- The Jackery HomePower 3600 Plus and Battery Pack 3600 is an essential home backup solution with a battery capacity of 7,168Wh. In comparison, EcoFlow TITAN 5000 Classic provides a battery capacity of 5,017.6Wh.
- EcoFlow TITAN 5000 Classic is rated at 4,000W, whereas Jackery HomePower 3600 Plus is rated at 3,600W with 7,200W surge output.
- Connecting the two compatible Jackery HomePower 3600 Plus units in parallel provides 240V output, whereas the EcoFlow TITAN 5000 Classic is a 120V-only model.
- Both Jackery HomePower 3600 Plus + Battery Pack 3600 and EcoFlow TITAN 5000 Classic use LiFePO4 batteries and offer a five-year warranty.
How Do the Jackery HomePower 3600 Plus + Battery 3600 and TITAN 5000 Classic Compare?
Feature | Jackery HomePower 3600 Plus + Battery Pack 3600 | EcoFlow TITAN 5000 Classic |
|---|---|---|
Battery Capacity | 3,584Wh per power station; 7,168Wh with one Battery Pack 3600 | 5,017.6Wh per power station |
Expandable Capacity | Up to 21kWh or 43kWh with two units attached | Up to 30kWh with additional batteries |
Output Power | 3,600W rated & 7,200W surge | 4,000W rated |
Output Voltage | 120V from one unit & 240V with two compatible units | 120V only |
Battery Chemistry | LiFePO4 | LiFePO4 |
Battery Lifespan | 6,000 charge cycles to at least 70% capacity; up to 16 years of use | Up to 10 years of use |
Solar Inputs | Up to 1,000W | Up to 3,200W |
Automatic Backup Switching | Under 10 milliseconds | Under 20 milliseconds when paired with the Smart Home Panel 10 |
Weight | Jackery HomePower 3600 Plus: Approximately 77.2 lb (35 kg) Battery Pack 3600: Approximately 55.1 lbs (25 kg) Total: 132.3 lb (60 kg) | Approximately 102.5 lb (46.5 kg) |
Operating Temperature | Charge Temperature -4°F~113°F (-20°C~45°C) Discharge Temperature -4°F~113°F (-20°C~45°C) | Charging Temperature 32°F–113°F / 0°C–45°C Discharging Temperature 14°F–113°F / -10°C–45°C |
Noise Level | Approximately 30dB in Quiet Mode | Under 30dB |
Warranty | 3-year standard warranty plus 2 additional years under Jackery's stated terms | 5 years |
Which Offers More Battery Capacity and Output Power?
The EcoFlow TITAN 5000 Classic delivers higher continuous output at 4,000W, compared with the Jackery HomePower 3600 Plus at 3,600W. However, the Jackery HomePower 3600 Plus offers more total battery capacity when paired with the Battery Pack 3600.
A single Jackery HomePower 3600 Plus has a 3,584Wh capacity, while the EcoFlow TITAN 5000 Classic has 5,017.6Wh. Adding the Jackery Battery Pack 3600 brings the combined capacity to 7,168Wh, giving you more stored energy to run appliances for longer between charges.
However, the actual runtime depends on your appliances’ power consumption and conversion losses.
Need more runtime? See the HomePower 3600 Plus + Battery Pack 3600 bundle.
Do Both Systems Support 240V Appliances?
A single Jackery HomePower 3600 Plus supplies only 120V output. However, you can connect two compatible Jackery HomePower 3600 Plus units using the required Jackery connector to create a 240V setup.
The EcoFlow TITAN 5000 Classic supports 120V output only, so it is not the right model for directly powering 240V appliances such as central air conditioning or some well pumps. Before buying either system, check the appliance's voltage, running watts, startup demand, and wiring requirements.
Which Power Station is Easier to Move Around?

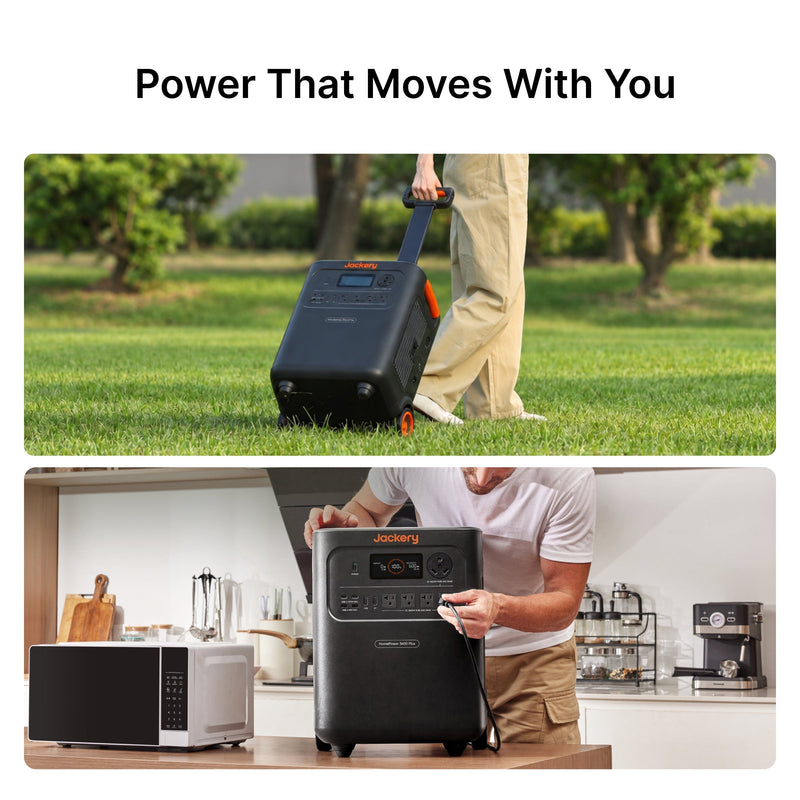

The Jackery HomePower 3600 Plus is easier to move around because it has built-in wheels and a retractable pull handle. Weighing approximately 77.2 lb (35 kg), it can be rolled between rooms or moved to a vehicle without carrying the entire unit.
The EcoFlow TITAN 5000 Classic weighs approximately 102.5 lb (46.5 kg). Its higher weight can make repositioning more difficult. However, if you choose the Jackery HomePower 3600 Plus with the Battery Pack 3600, remember that the battery pack adds approximately 55.1 lb (25 kg).
Jackery divides the load between a wheeled 77.2 lb power station and a 55.1 lb battery pack, making transportation easier compared to the 102.5 lb EcoFlow TITAN 5000 Classic.
Which Should You Choose: Jackery HomePower 3600 Plus + Battery Pack 3600 vs. EcoFlow TITAN 5000 Classic?
Choose the Jackery HomePower 3600 Plus with Battery Pack 3600 if you need more stored energy than a single Jackery unit provides or need the option to build a 240V setup using two compatible power stations. Keep in mind that the power station and battery pack together weigh approximately 132.3 lb.
Shop Jackery HomePower 3600 Plus + Battery Pack 3600
Choose the EcoFlow TITAN 5000 Classic if you want more battery capacity from a single unit, higher rated output, and expansion up to 30kWh. However, this model supports 120V output only, so it is not suitable for directly powering 240V appliances.
The practical choice between the Jackery HomePower 3600 Plus + Battery Pack 3600 and the EcoFlow TITAN 5000 Classic comes down to the appliances you need to run, how long you need them powered, how quickly you can recharge, and whether your home requires 240V backup.
Frequently Asked Questions
How long can the Jackery HomePower 3600 Plus with Battery Pack 3600 power a home during an outage?
The Jackery HomePower 3600 Plus with Battery Pack 3600 provides 7,168 Wh of battery capacity. For example, this bundle can run your refrigerator (300W) for about 19 hours and lights (30W) for 117.2 hours on a single charge. If you want to calculate how long the Jackery HomePower 3600 Plus can run your household appliances, you can use the runtime calculator available on its product page.
How long does the Jackery HomePower 3600 Plus take to charge?
The Jackery HomePower 3600 Plus takes around 2.5 hours to charge from a wall outlet. With two Jackery SolarSaga 500 X Solar Panels, it takes approximately 4 hours. Using AC charging and DC charging together can reduce charging time to about 2 hours. For more information about the charging time and methods, you can check our guide: How to Charge the Jackery HomePower 3600 Plus.
How large can each system eventually grow?
The Jackery HomePower 3600 Plus can expand to 21kWh with additional batteries or up to 43kWh with two Jackery HomePower 3600 Plus units in parallel and additional batteries, while the EcoFlow TITAN 5000 Classic can reach 30kWh by connecting up to five extra batteries.
Can either system power central AC or a well pump?
The EcoFlow TITAN 5000 Classic is 120V-only and cannot directly power 240V appliances. Two compatible Jackery HomePower 3600 Plus units can provide 240V output, so you can power compatible 240V appliances within running and startup limits, such as central AC or a well pump.
How many years can I expect each unit to last?
The Jackery HomePower 3600 Plus is rated for 6,000 charge cycles while retaining at least 70% of its original capacity, with a theoretical battery-life estimate of up to 16 years. EcoFlow estimates up to 10 years of use for the TITAN 5000 Classic. However, the actual lifespan depends on usage and maintenance.
