Note that the total rated wattage should be under 100w (surge 150w). If the device power is outside this range, Explorer 160 may stop working.
Professional MPPT technology provides faster solar recharge rates. With compatible solar power charging, the Explorer 160 portable power station can perform as a solar generator. It can be fully charged under straight full sun in 4.5 hours by connecting SolarSaga 60W solar panel. So you can have an unlimited power source from the sun and always keep charged on the go.
Solar recharging steps:
1. Find the DC interface on the back of SolarSaga 60;
2. Connect the DC interface of SolarSaga 60 with the DC input of Explorer 160
Please Mind These While Solar Recharging:
1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

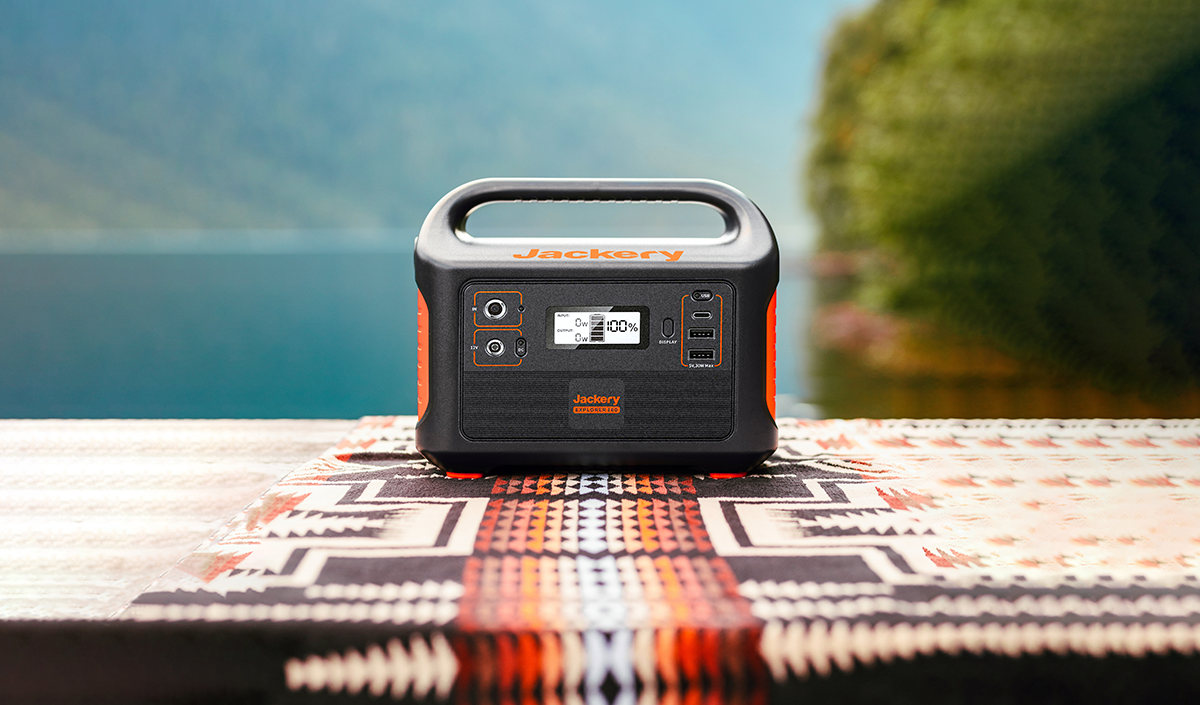

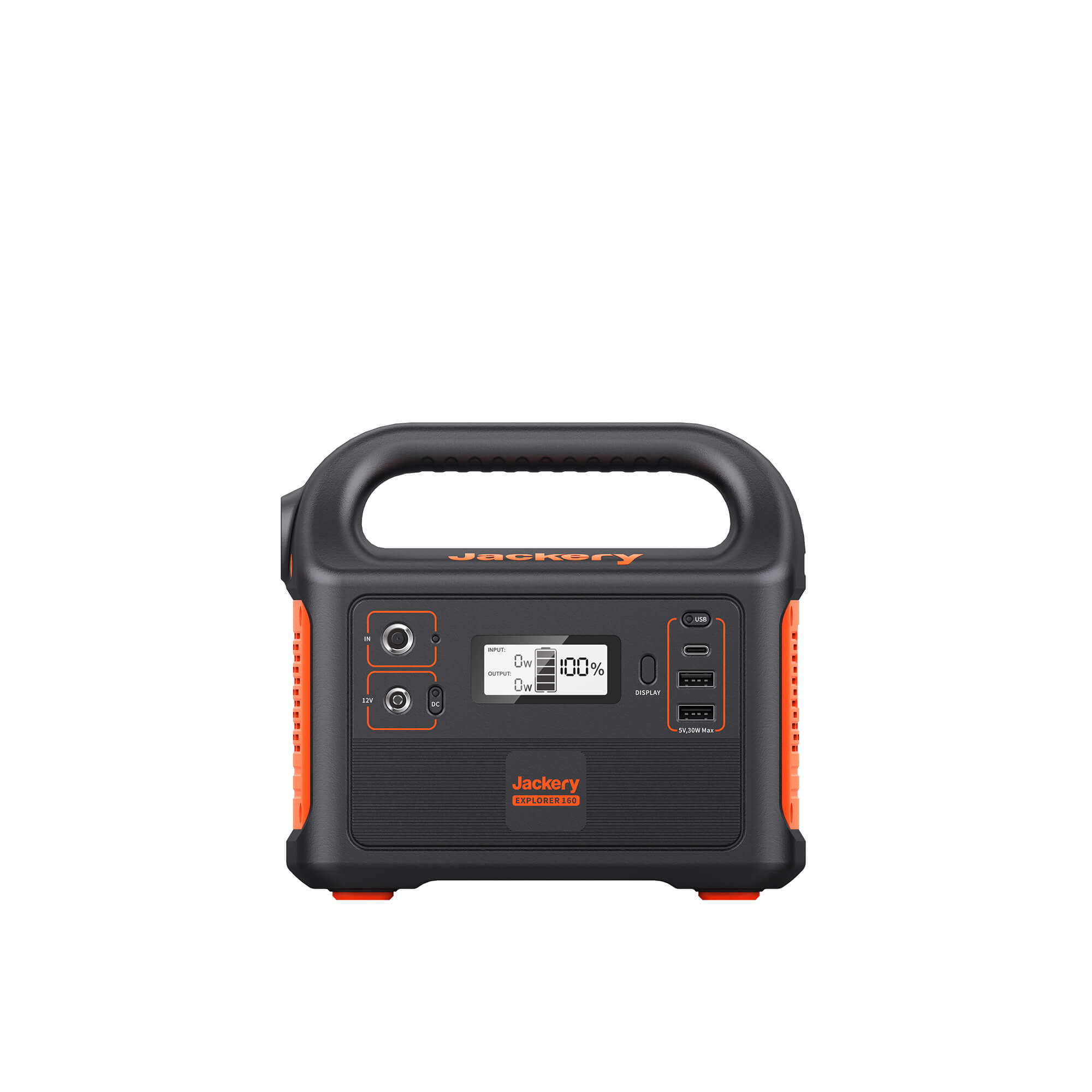

Jackery Explorer 160 is one of the smallest and lightest 167Wh rechargeable lithium battery generators on the market. No fuel or gasoline needed, no fumes, no clanging, it's perfect for both indoor use and off-grid outdoor activities like camping and fishing, which is a mini portable power station to charge your smartphones, camera, laptop, gopro and other smaller electronics.
Professional MPPT technology provides faster solar recharge rates. The Explorer 160 can be quickly recharged within 4.5 hours by connecting SolarSaga 60 solar panels together with an adapter cable (sold separately).
Please Mind These While Solar Recharging:
1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.
2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.
Jackery Explorer 160 is one of the smallest and lightest 167Wh rechargeable lithium battery generators on the market. The Explorer 160 is perfect for both indoor use and off-grid outdoor activities like camping and fishing, which is a mini portable power station to charge your smartphones, camera, laptop, gopro and other smaller electronics.
Capacity:
Cell Chemistry:
Lifecycles:
Management System:
167Wh ( 11.6Ah, 14.4V)
Li-ion NMC
≥500 cycles to 80%
BMS, Over Voltage Protection, Short Circuit Protection
AC Output:
USB-A Output:
USB-C Output:
Car Output:
DC Input:
110V 60Hz, 100W (Peak 150W)
5V, 2.4A
5V, 3A
12V, 7V
12V-30V, 42W Max
AC Adapter:
12V Car Adaptor:
SolarSaga 60W Solar Panels:
5 Hours
5 Hours
4.5 Hours
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
Optional Accessory:
3.97 lbs (1.8 kg)
7.4 x 4.5 x 6.7 in (18.8 x 11.4 x 17 cm)
14-104F (-10-40℃)
FCC, ROHS, UN38.3
24 Months
Capacity:
Cell Chemistry:
Lifecycles:
Management System:
167Wh ( 11.6Ah, 14.4V)
Li-ion NMC
≥500 cycles to 80%
BMS, Over Voltage Protection, Short Circuit Protection
AC Output:
USB-A Output:
USB-C Output:
Car Output:
DC Input:
110V 60Hz, 100W (Peak 150W)
5V, 2.4A
5V, 3A
12V, 7V
12V~30V, 42W Max
AC Adapter:
12V Car Adaptor:
SolarSaga 60W Solar Panels:
5 Hours
5 Hours
4.5 Hours
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
Optional Accessory:
3.97 lbs (1.8 kg)
7.4 x 4.5 x 6.7 in (18.8 x 11.4 x 17 cm)
14-104F (-10-40℃)
FCC, ROHS, UN38.3
24 Months
Capacity: 167Wh ( 11.6Ah, 14.4V)
Cell Chemistry: Li-ion NMC
Lifecycles: ≥500 cycles to 80%
Management System: BMS, Over Voltage Protection, Short Circuit Protection

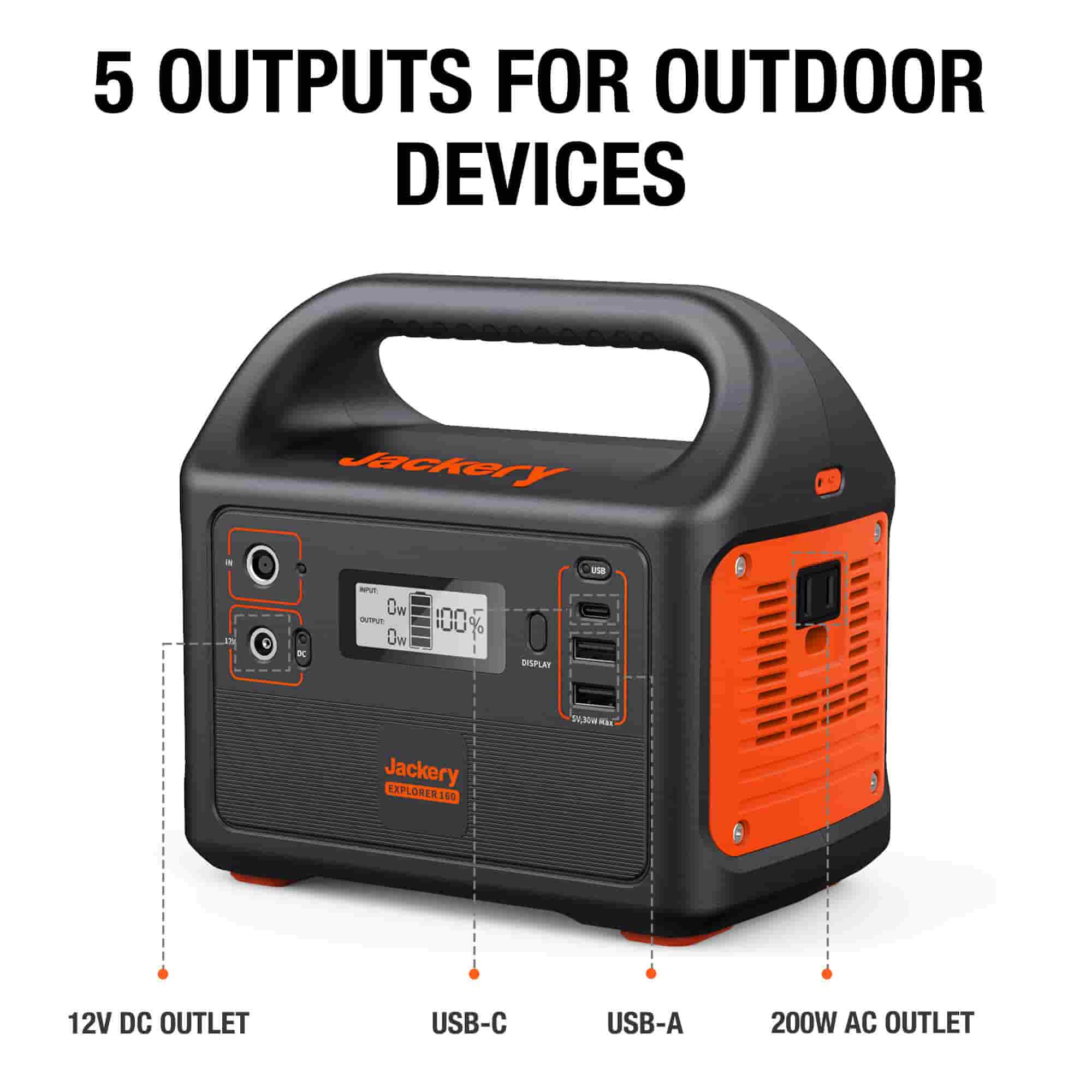

AC Output: 110V 60Hz, 100W (Peak 150W)
USB-A Output: 5V, 2.4A
USB-C Output: 5V, 3A
Car Output: 12V, 7V
DC Input: 12V~30V, 42W Max

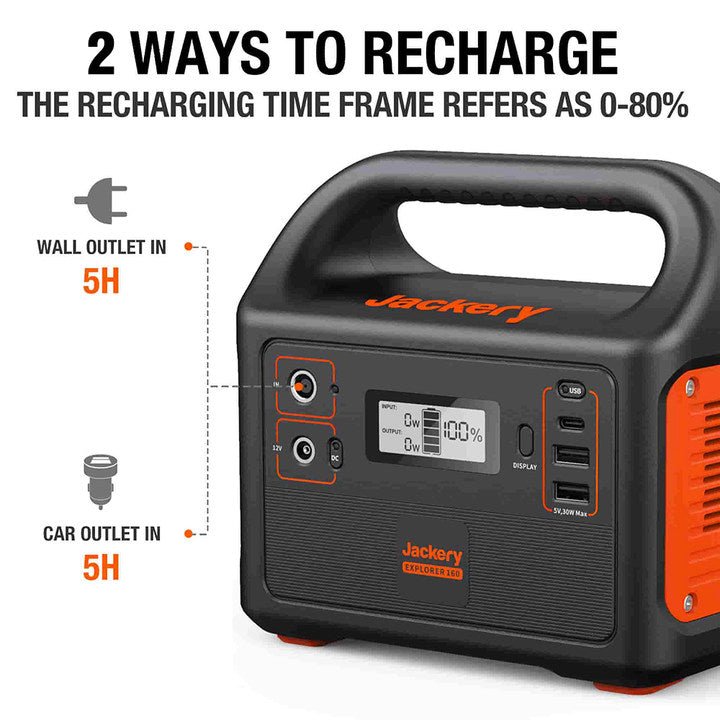

AC Adapter: 5 Hours
12V Car Adaptor: 5 Hours
SolarSaga 60W Solar Panels: 4.5 Hours
Weight: 3.97 lbs (1.8 kg)

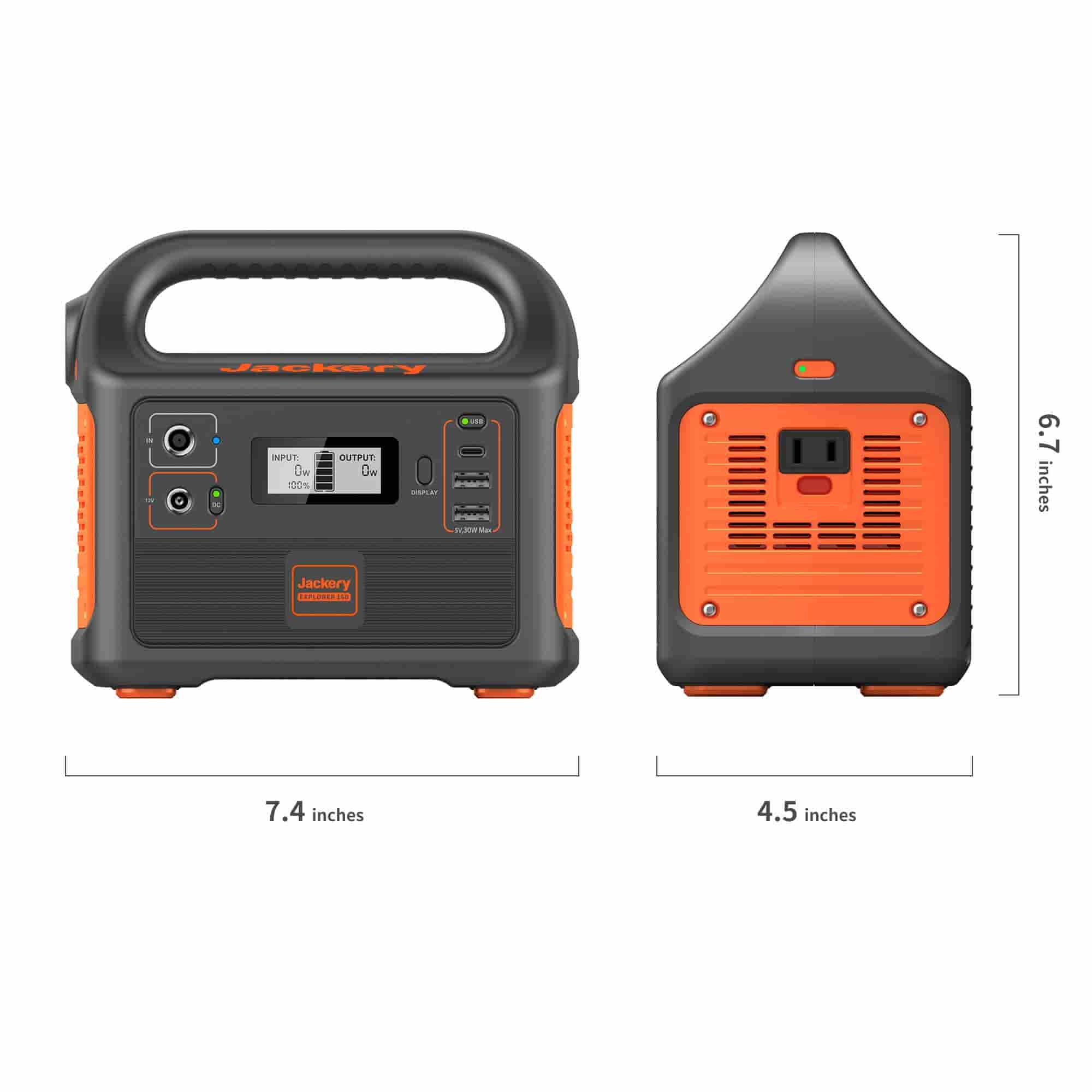

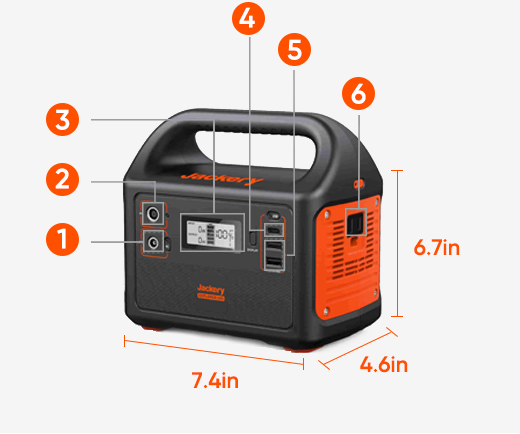

Dimensions (LxWxD): 7.4 x 4.5 x 6.7 in (18.8 x 11.4 x 17 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: FCC, ROHS, UN38.3
Warranty: 24 Months
Optional Accessory: Jackery SolarSaga 60W Solar Panel
A: Please note that the AC output ports can only charge/power devices that operate at less than 100-Watts, besides, the whole wattage should be under 100 watts as well . Once exceeding, the Explorer 160 will shut off automatically. Please refer to your device specification before purchase.
A: Working time = 167Wh* 0.85 / operating wattage of your device
For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 167Wh*0.85/60w=2.3hrs (rough calculated) .
Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.
A: Yes, Explorer 160 supports pass-through charging. But we don't suggest, it will cause damage to battery life.
A: The Explorer 160 is not waterproof. Please do not store them in humid environment for longtime.
