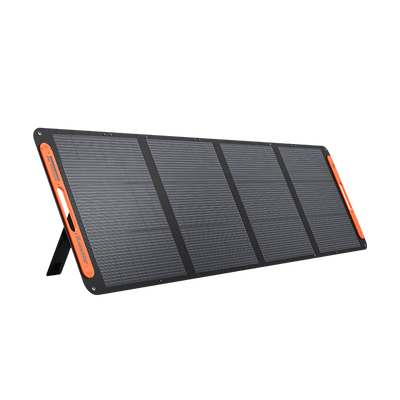

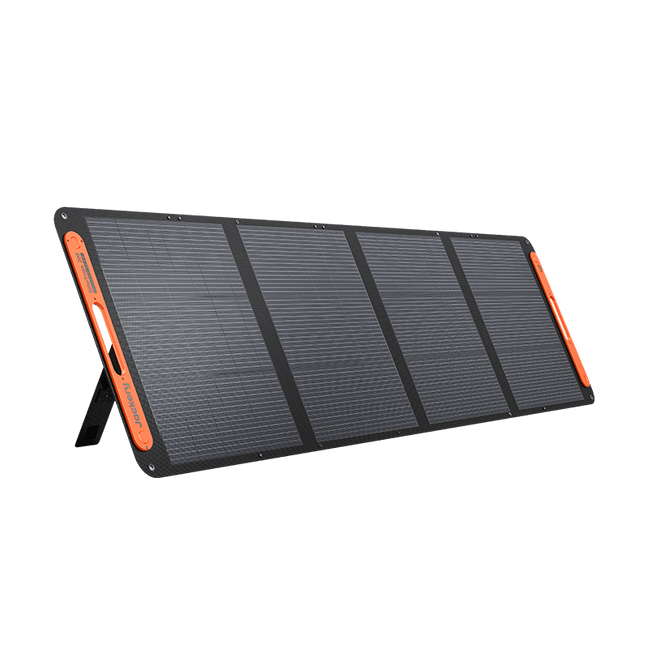

Jackery SolarSaga 200W Solar Panel

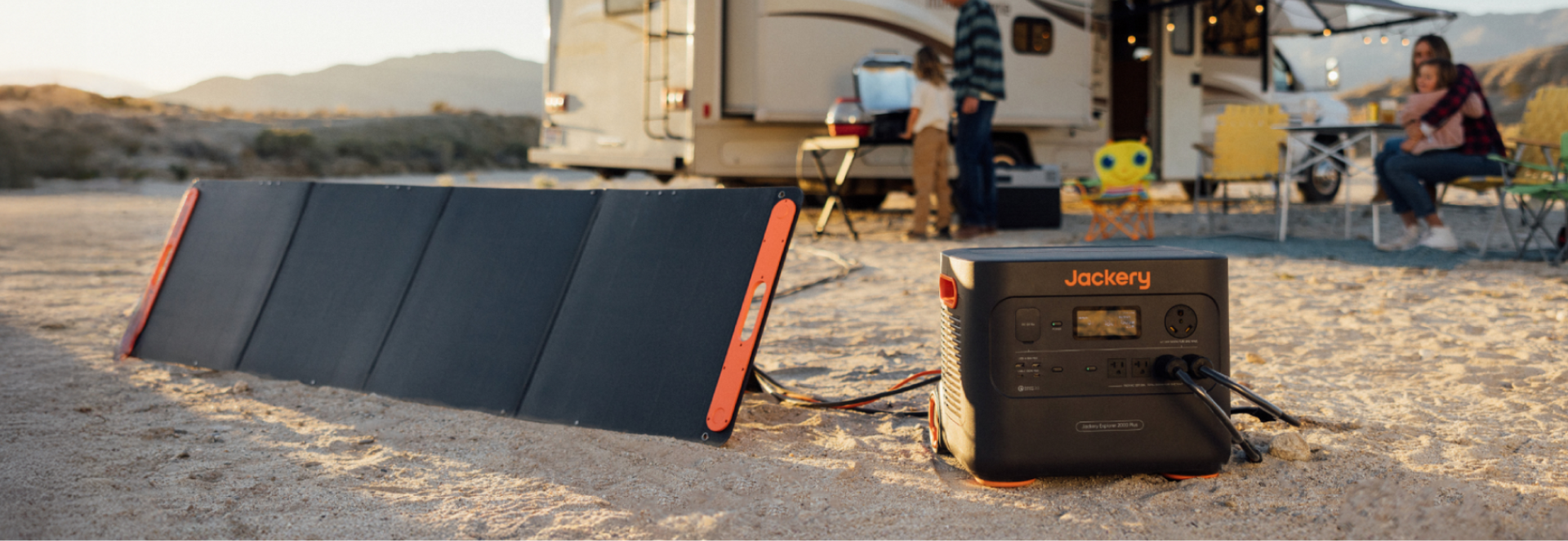

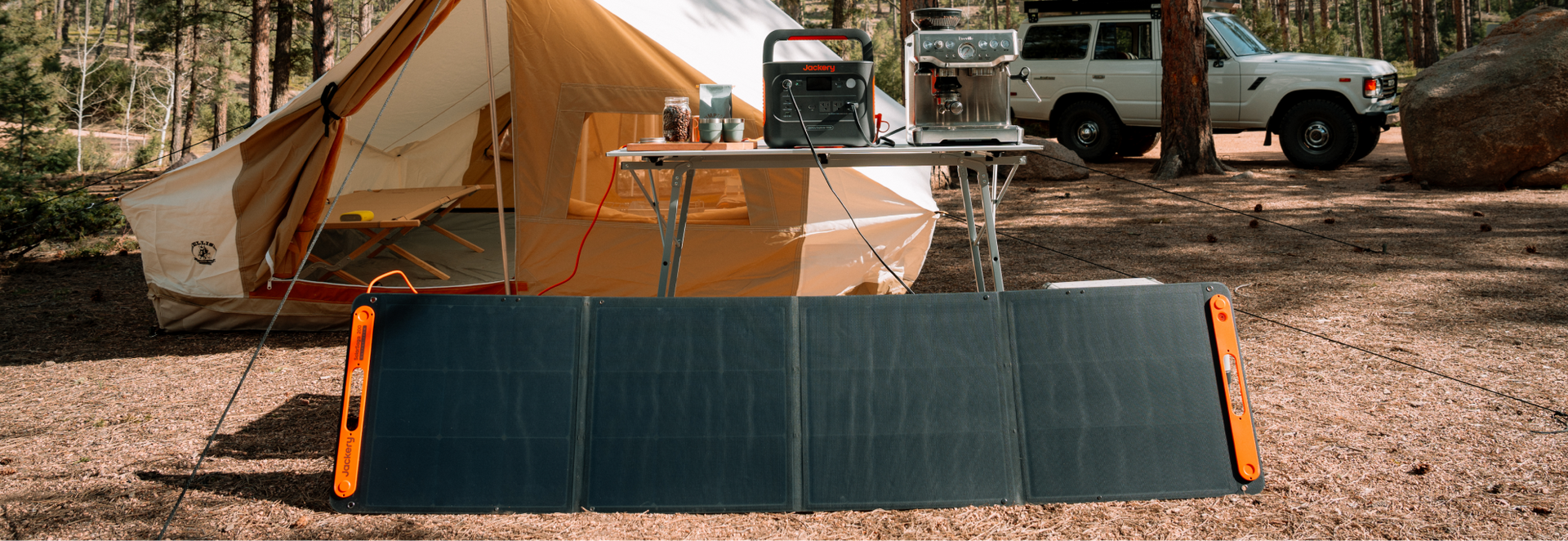

Jackery SolarSaga 200W Solar Panel charge Explorer 2000 on the beach
SolarSage 200W’s waterproof level is IP67
With the ETFE(Ethylene Tetrafluoroethylene) film surface, the Jackery SolarSaga 200W panels can obtain very high light transmittance to increase recharging speed.
With a solidly designed handle, you can take the SolarSaga 200W (about 2.9kg) to camp out,
Jackery SolarSaga 200W Solar Panel
Jackery SolarSaga 200W

Jackery SolarSaga 200W Solar Panel

Regular price $ 599.00

Description

  • COMPATIBLE WITH THE JACKERY EXPLORER 1500/2000: It takes 2.5 hours (from 0-80%) to recharge an Explorer 2000 through 4 SolarSaga 200W solar panels. The Explorer 2000 can also be recharged by 2 SolarSaga 200W panels and a single SolarSaga 200W panel.



  • IMPROVING SOLAR RECHARGING EFFICIENCY: With the ETFE(Ethylene Tetrafluoroethylene) film surface, the Jackery SolarSaga 200W panels can obtain very high light transmittance to increase recharging speed. To compare with the Poly-crystalline material, the Mono-crystalline has higher conversion efficiency and more compact size.



  • WATERPROOF SOLAR PANEL: SolarSage 200W’s waterproof level is IP67. It means that SolarSaga 200W not only will completely prevent the intrusion of foreign objects and dust, but it also can prevent short-term immersion under normal temperature and pressure when the SolarSaga 200W is temporarily immersed in water under one meter.



  • FOLDABLE DESIGN, EASY TO CARRY: With a solidly designed handle, you can take the SolarSaga 200W (about 8.3kg) to camp out or go anywhere else at your leisure. The folding design will take very little space in the car, making the trip more convenient and accessible.


Worry Free Shipping

MORE RANGE. MORE POWER. THROUGH THE SUN.

We always strive to capture the possibility of utilizing a more powerful resource method through mother nature - the Sun. Our SolarSaga 200W Portable Solar Panel is here to do the work.

SOLARPEAK TECHNOLOGY™

Our Product & Design team has devoted over a year to invent a technology to enable our product line a smarter, more user friendly, and higher efficient operating system - the Solarpeak Technology™ (an upgraded MPPT solar regulator). Its algorithm will identify, monitor, and maximize the greatest possible input available in concurrency, extracting the most sizable power under all conditions to add up 30% more solar charging efficiency.

HIGH SPEED SOLAR RECHARGING

(The recharging time refers to 80% of power level being charged*)

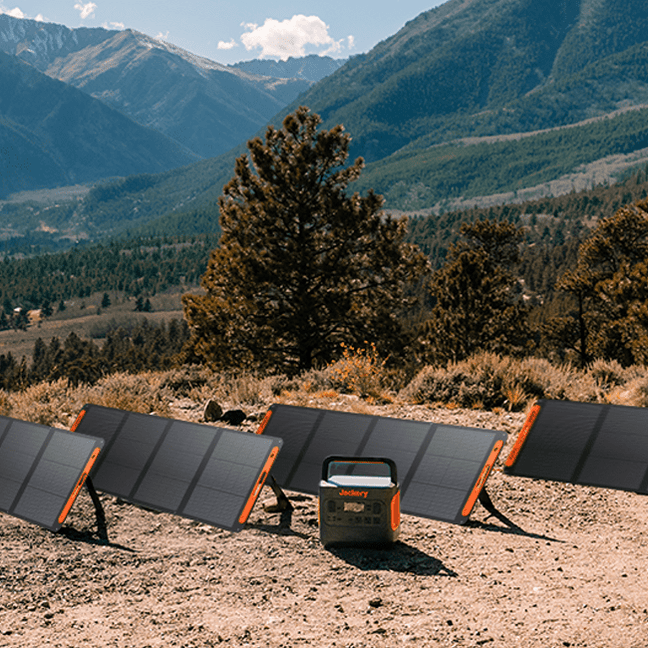

  • 2* SolarSaga 200 charging the Explorer 1500: 4 Hours
  • 4* SolarSaga 200 charging the Explorer 2000: 2.5 Hours

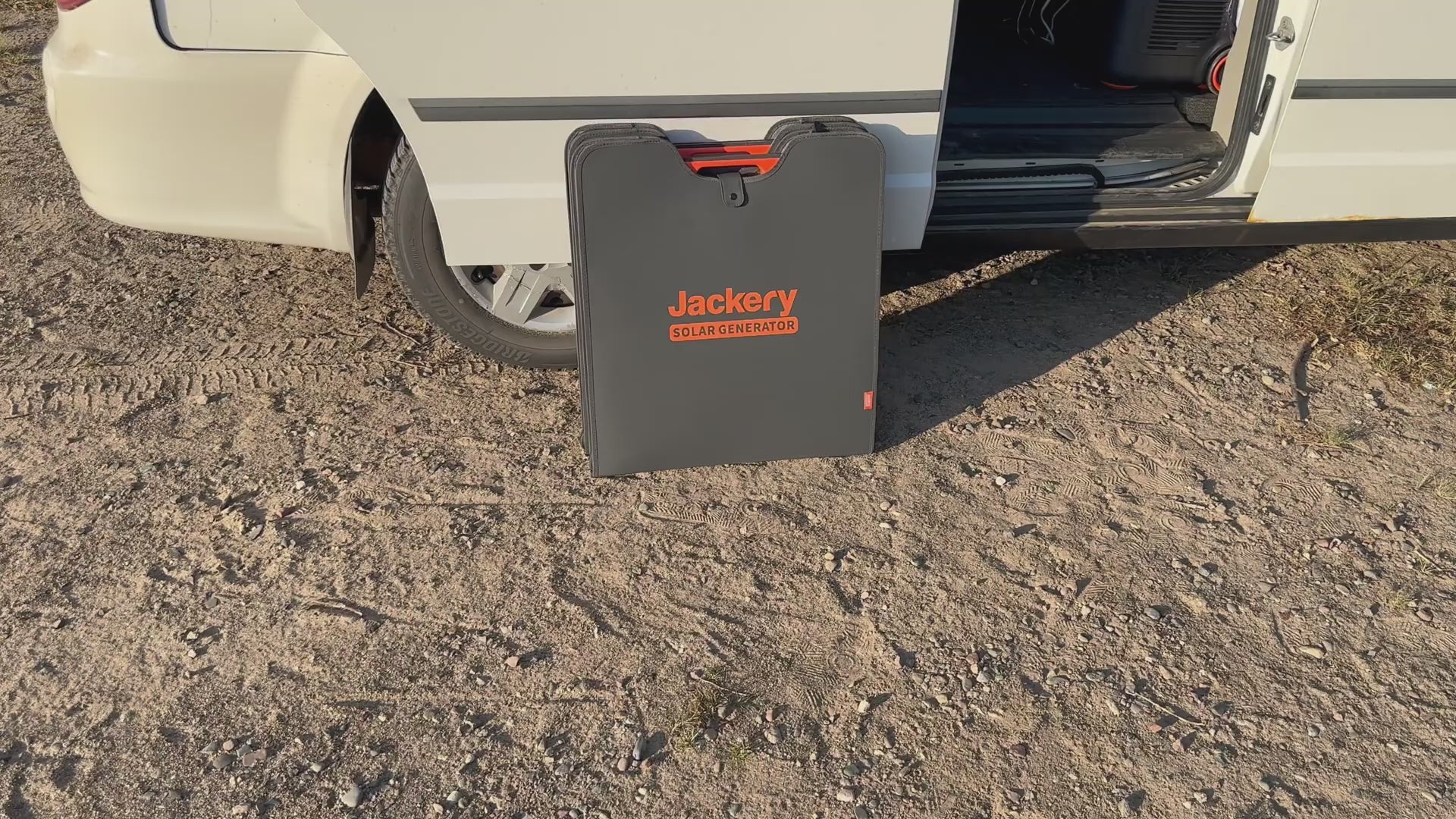

FOLDABLE & DURABLE

The convenient and accessible design will ease your adventures in all settings.

Unfold, open, ready to charge.



SOLARPEAK TECHNOLOGY™

Our Product & Design team has devoted over a year to invent a technology to enable our product line a smarter, more user friendly, and higher efficient operating system - the Solarpeak Technology™ (an upgraded MPPT solar regulator). Its algorithm will identify, monitor, and maximize the greatest possible input available in concurrency, extracting the most sizable power under all conditions to add up 30% more solar charging efficiency.

HIGH SPEED SOLAR RECHARGING

(The recharging time refers to 80% of power level being charged*)

  • 2* SolarSaga 200 charging the Explorer 1500: 4 Hours
  • 4* SolarSaga 200 charging the Explorer 2000: 2.5 Hours

FOLDABLE & DURABLE

The convenient and accessible design will ease your adventures in all settings.

Unfold, open, ready to charge.



IP67 GRADE WATERPROOF

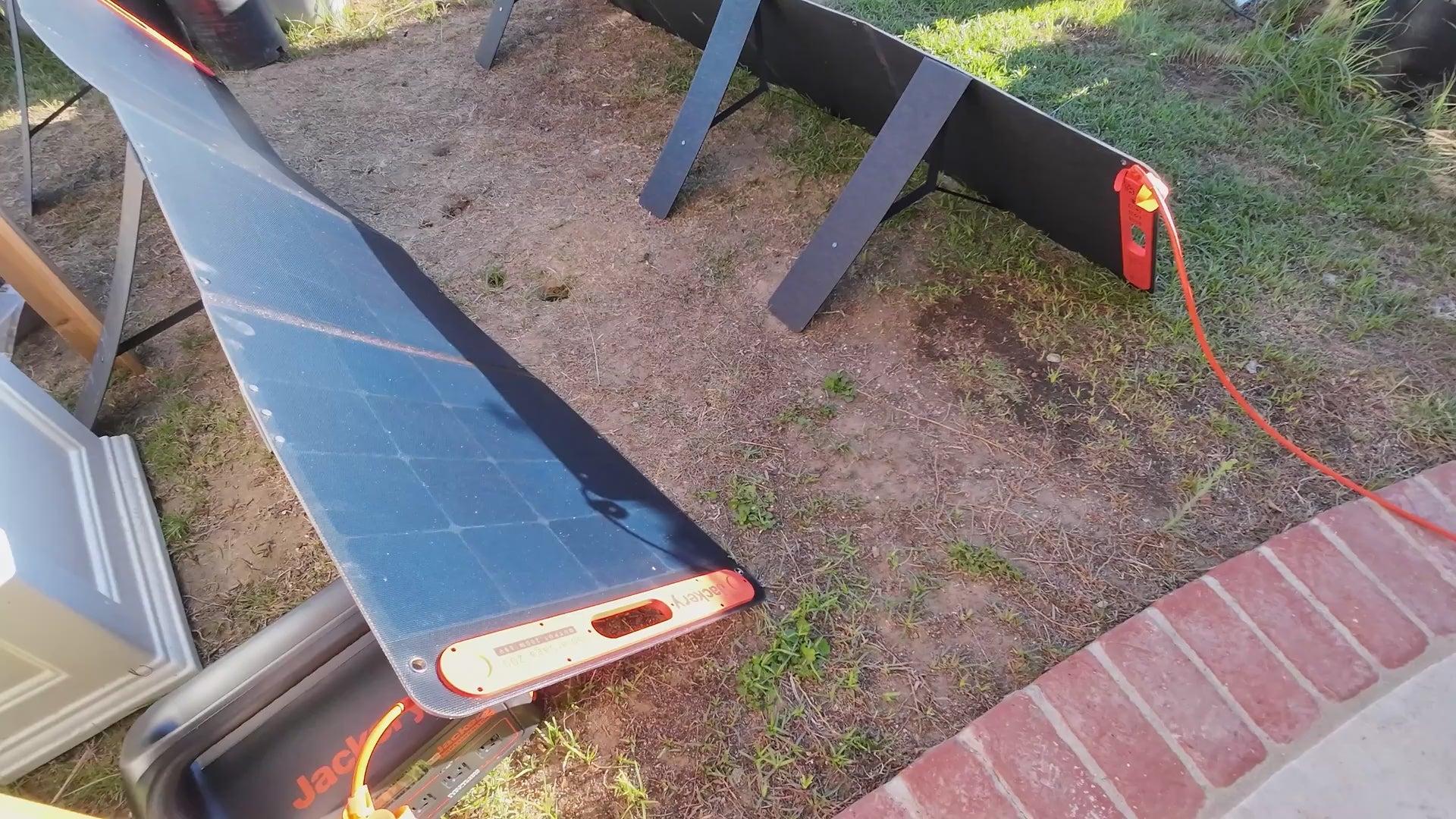

HOW TO CONNECT SOLARSAGA 200 WITH EXPLORER

Solar recharging steps:

Step 1. Connect the first panel - find the "DC interface" on the back of SolarSaga 200, and plug it in solar power cable;

Step 2. Connect the second panel - follow step 1;

Step 3. Connect the solar panels and the solar power cable with the Explorer 2000/1500's DC input.

Congratulations, you got it!

IT'S TIME TO CHARGE YOUR NEXT TRIP.

OVERLANDING

RV/VAN LIFE

Specifications

SOLAR

Peak Power:                  200W

Cell Efficiency:              23%

Power Voltage:             19V

Power Current:             10.53A

Open Circuit Voltage: 24.2V

Short Circuit Current: 10.8A


Weight: 18.3 lbs (8.3kg)

Dimensions (folded):     21.3 x 24.6 x 1.7 in (540x 625 x 44 mm)

Dimensions (unfolded): 21.3 x 92.7 x 1 in (540 x 2355 x 25 mm)

Operating Usage Temperature: 14-149F (-10-65℃)

Warranty: 24 Months


In The Box

• 1* SolarSaga 200

• 1* User Manual


User Manual

Specifications

SOLAR

Peak Power:

Cell Efficiency:

Power Voltage:

Power Current:

Open Circuit Voltage:

Short Circuit Current:

200W

23%

19V

10.53A

24.2V

10.8A

GENERAL

Weight:

Dimensions (folded):

Dimensions (unfolded):

Operating Usage Temperature:

Warranty:

18.3 lbs (8.3kg)

21.3 x 24.6 x 1.7 in (540x 625 x 44 mm)

21.3 x 92.7 x 1 in (540 x 2355 x 25 mm)

14-149F (-10-65℃)

24 Months


In The Box

• 1* SolarSaga 200

• 1* User Manual


User Manual

FAQs

Q: Why the solar can not produce 200W power when charging to Jackery power station?

A: As you know , the solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 200W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.

Q: Is the solar panel waterproof?

A: Yes, the Solar Saga 200W is waterproof.

Q: How to clean the solar panel surface?

A: We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

Q: Can the solar panel charge smartphones and tablet?

A: No. There is no charging ports in SolarSaga 200.

Q: Does the SolarSaga 200 compatible with other Explorer power station?

A: The SolarSaga 200 is only compatible with the Explorer 1500 and 2000 power station.
