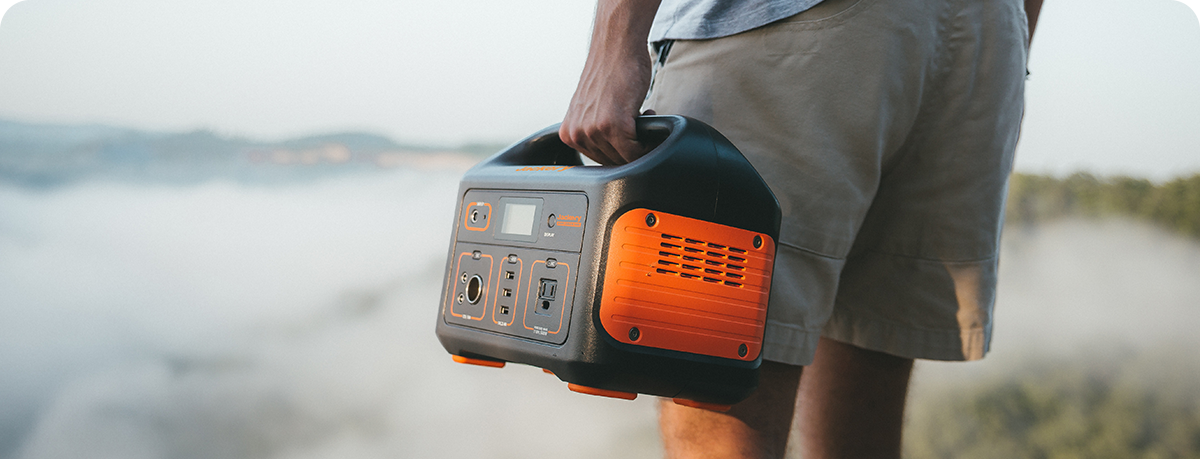

Jackery Protable Power Station Explorer 500 and SolarSaga 100W Panel

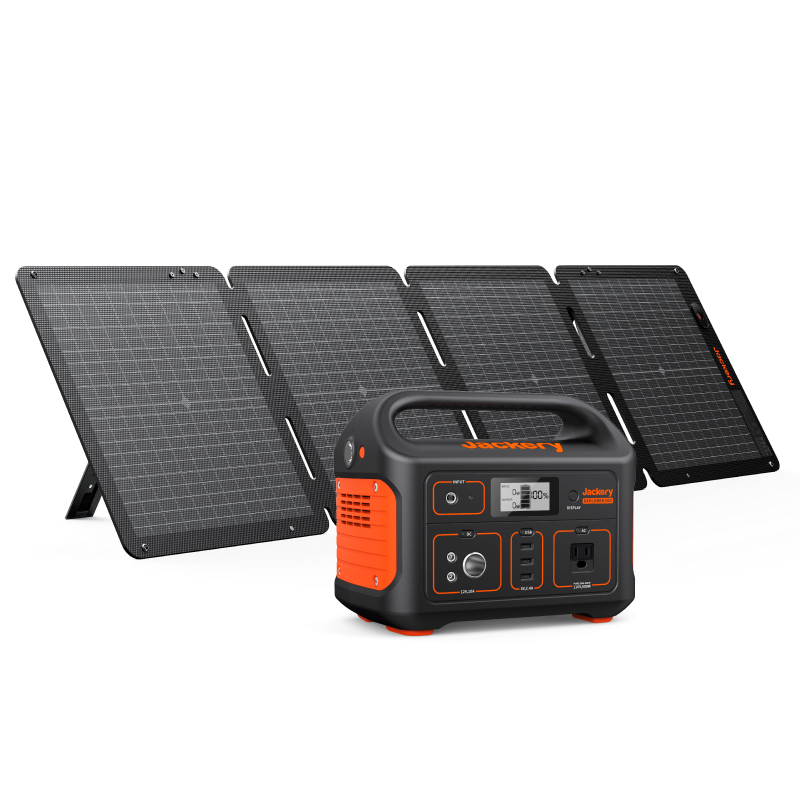

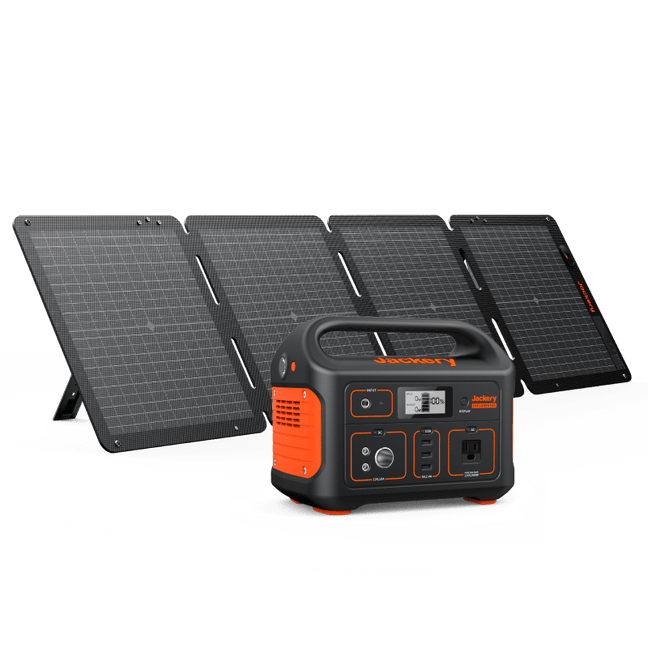

Jackery Solar Generator 500 (Jackery 500 + SolarSaga 100W)

Jackery solar generator can power 2 USB devices

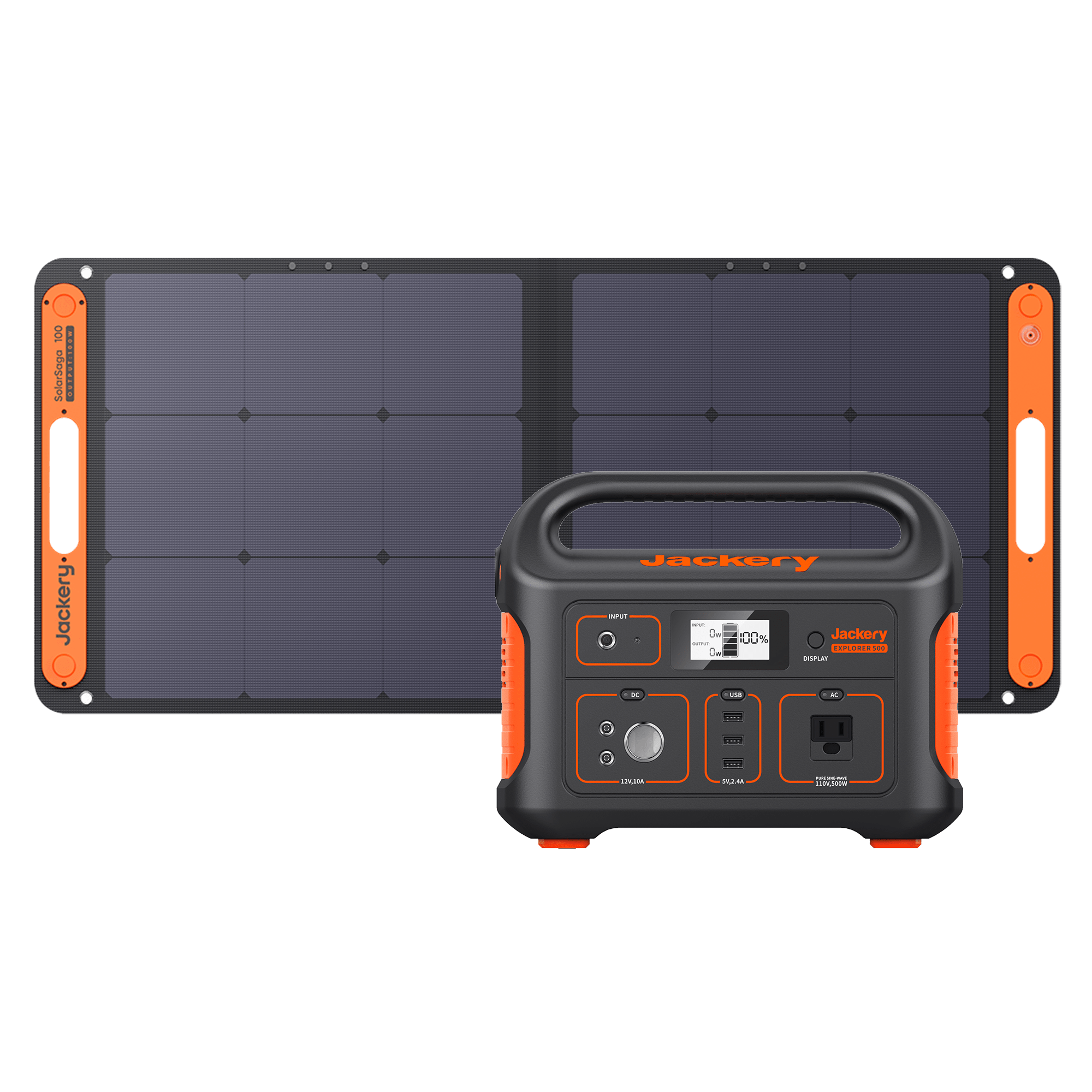

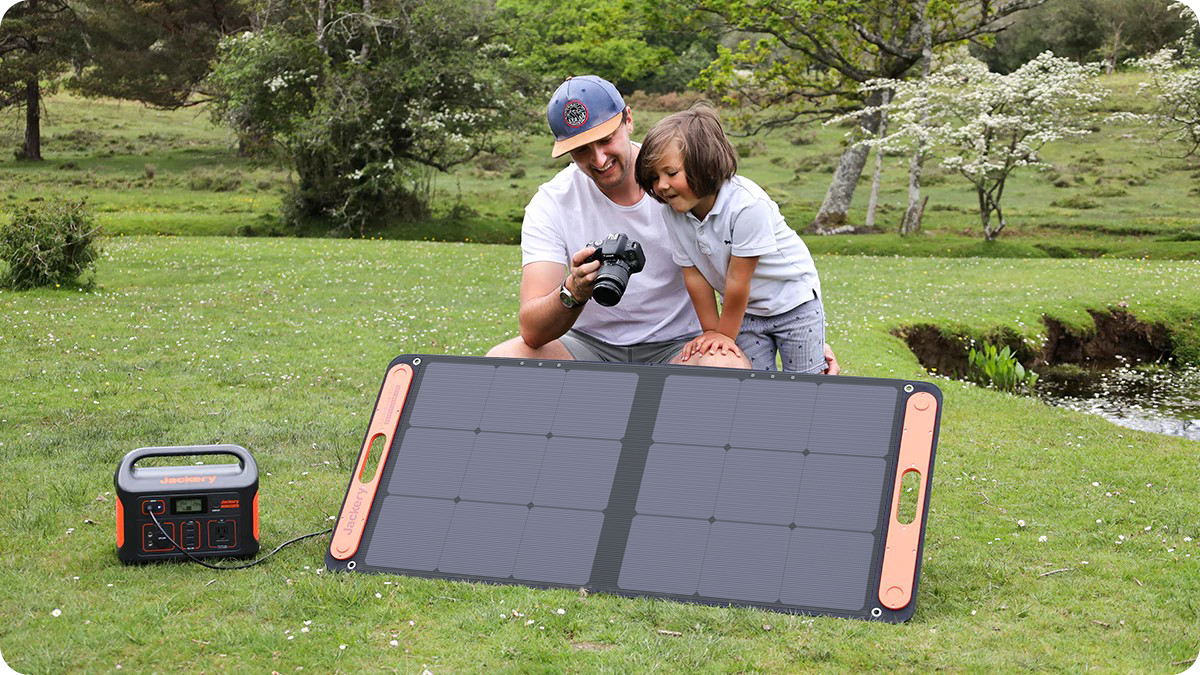

Jackery Solar Generator is made up of a Explorer 500 and a SolarSaga 100

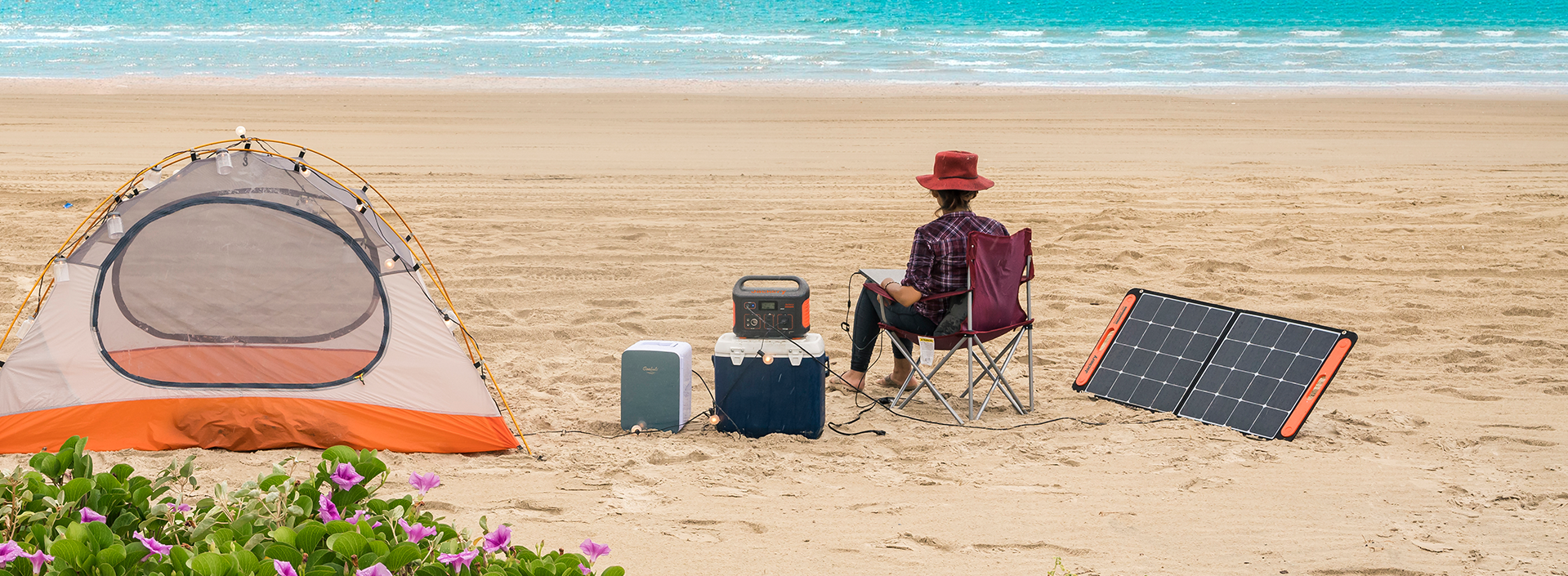

Enjoy a camping party or outdoor explorer with Jackery Solar Generator.

Jackery Solar Generator 500 (Jackery 500 + SolarSaga 100W)

$ 799.98 $ 749.98

Description

Explore 500 Portable Power Station + SolarSaga 100W Solar Panel: Jackery Portable Solar Generator for Outdoor Adventure Car Camping.

Clean & Quiet: Drawing energy from the sun and powering through a battery. No gasoline, toxic fumes, or noise during operation。
Convenient: With a compact, lightweight design, it's easy to carry around wherever you go.
Safe: Emissions-free energy source and reliable battery management system makes it safe enough even for indoor use.
Lower Cost: Harnessing the sun’s energy for free and with virtually no maintenance.

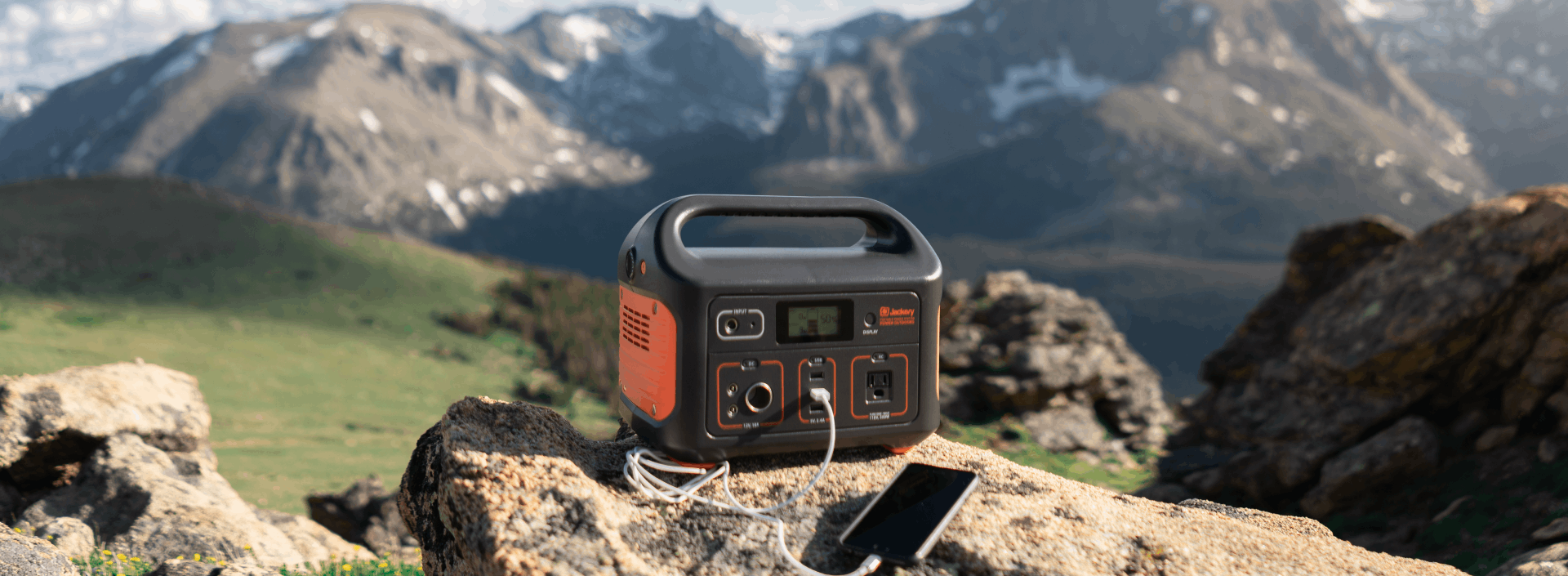

Jackery Explorer 500 is one of the lightest and most portable rechargeable lithium battery generators on the market. It features with PURE SINE WAVE 500 watt AC outlet which provides stable power to a wide range of AC-relied devices from TVs, projectors to small blenders, a pellet smoker etc. Note: the appliance must be rated under 500 watt (surge 1000W).

Jackery SolarSaga 100W Monocrystalline Solar Panel, stay charged with the power of the sun! With high conversion efficiency up to 23%, it's ideally suited for outdoor life and even unexpected power outages. The solar panel weighs only 9.1 lbs, it's lightweight, foldable and portable with an easy-carry handle.

Available for all qualifying orders in the contiguous USA.

Jackery warrants to the original consumer purchaser that the Jackery product will be free from defects in workmanship and material under normal consumer use during the applicable warranty period of 24 months.

Jackery offers a 30-day money back guarantee for goods purchased directly from Jackery.

See our Shipping Policy, and Warranty & Return Policy.

FEATURES
TECH SPECS
FAQ & REVIEWS

OFF-GRID SOLAR GENERATOR, GREEN AND CLEAN POWER SUPPLY

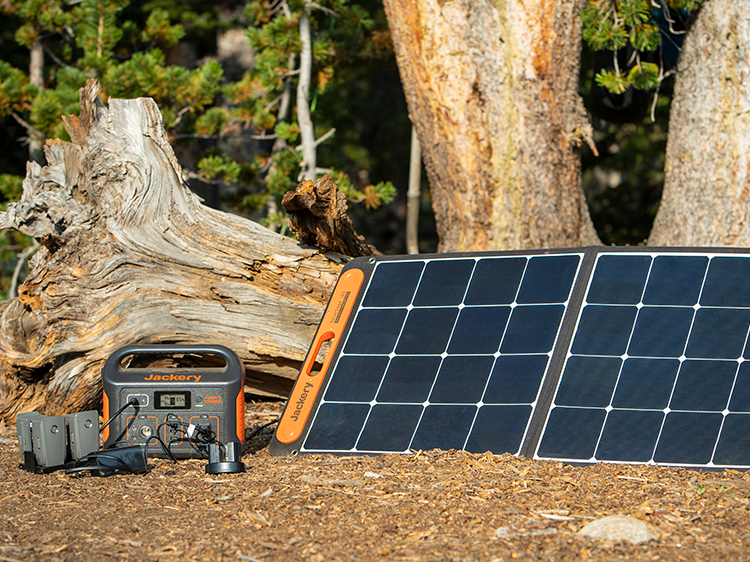

Jackery Explorer 500 + SolarSaga 100W solar generator is a solar solution that combines Jackery Explorer 500 portable power station with SolarSaga 100W solar panel. It converts sun energy captured by SolarSaga 100W solar panels into electrical power and then stores it in the Explorer 500 portable power station for later use. This solar generator is a reliable and clean power source for campers, RVs, or as an emergency backup if your power goes out.

EXPLORER 500 HIGHLIGHTS

Versatile outdoor power supply: 518Wh/144,400mAh battery capacity, 500W Rated Power and 1000W Surge Power from the pure-sine wave AC port.

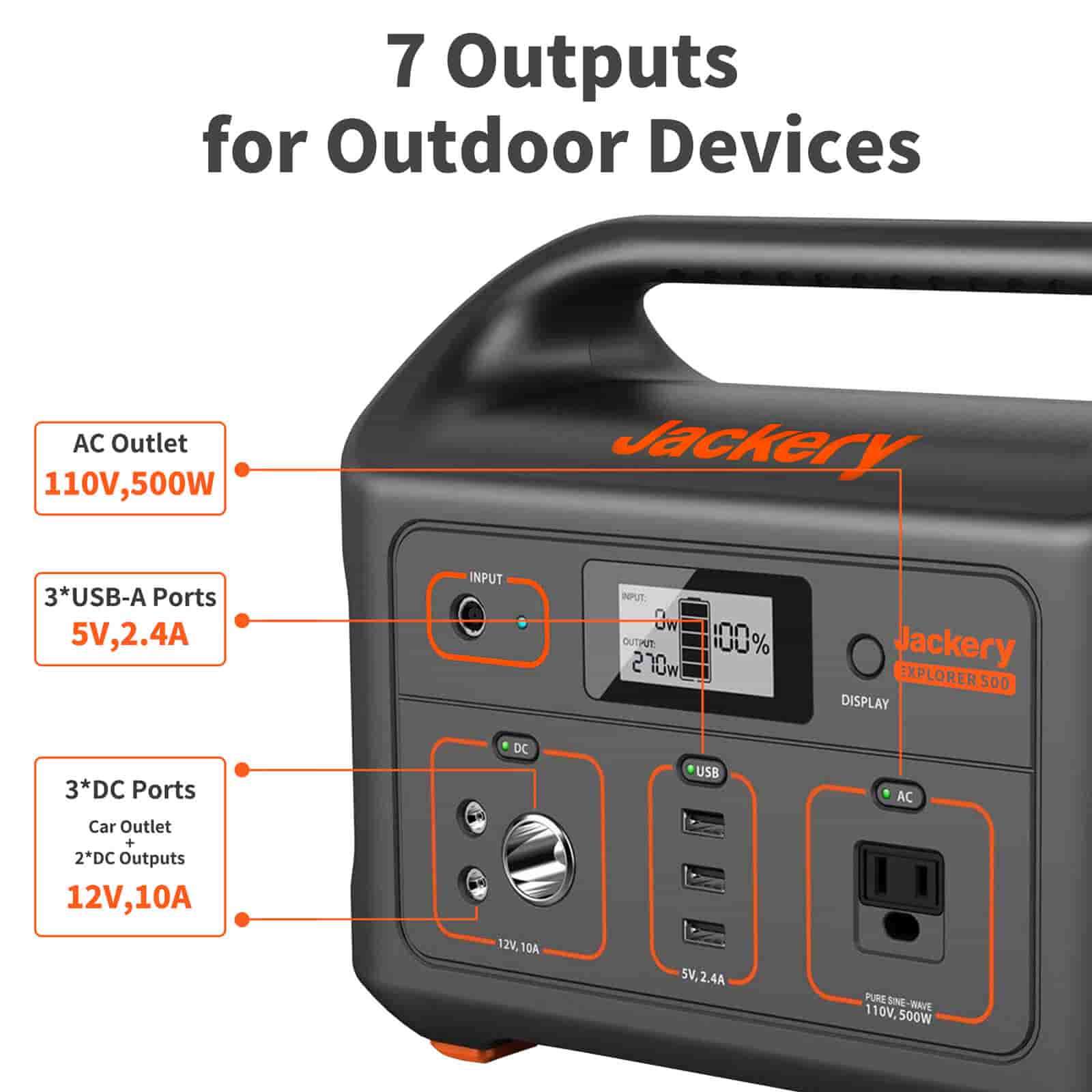

All-in-one portable power station: includes three USB ports, AC outlet, and 12V car output. Jackery Explorer 500 provides stable power to mainstream electronics and small appliances, from TVs, projectors to small blenders, etc.
Professional MPPT technology provides faster solar recharge rates. The Explorer 500 can be recharged within 9.5 hours by SolarSaga 100W solar panels.
Portable and compact: Weights only 13.32lbs with an easy-carry handle.

MORE ABOUT EXPLORER 500

EXPLORER 500 HIGHLIGHTS

Versatile outdoor power supply: 518Wh/144,400mAh battery capacity, 500W Rated Power and 1000W Surge Power from the pure-sine wave AC port.

All-in-one portable power station: includes three USB ports, AC outlet, and 12V car output. Jackery Explorer 500 provides stable power to mainstream electronics and small appliances, from TVs, projectors to small blenders, etc.
Professional MPPT technology provides faster solar recharge rates. The Explorer 500 can be recharged within 9.5 hours by SolarSaga 100W solar panels.
Portable and compact: Weights only 13.32lbs with an easy-carry handle.

MORE ABOUT EXPLORER 500

SolarSaga 100W HIGHLIGHTS

High conversion efficiency solar generator:
High conversion efficiency up to 23%, building a Portable-Solar-Generator System together with Jackery Explorer 1000/500/300/240/160 power station.
Solar charger with USB outputs:

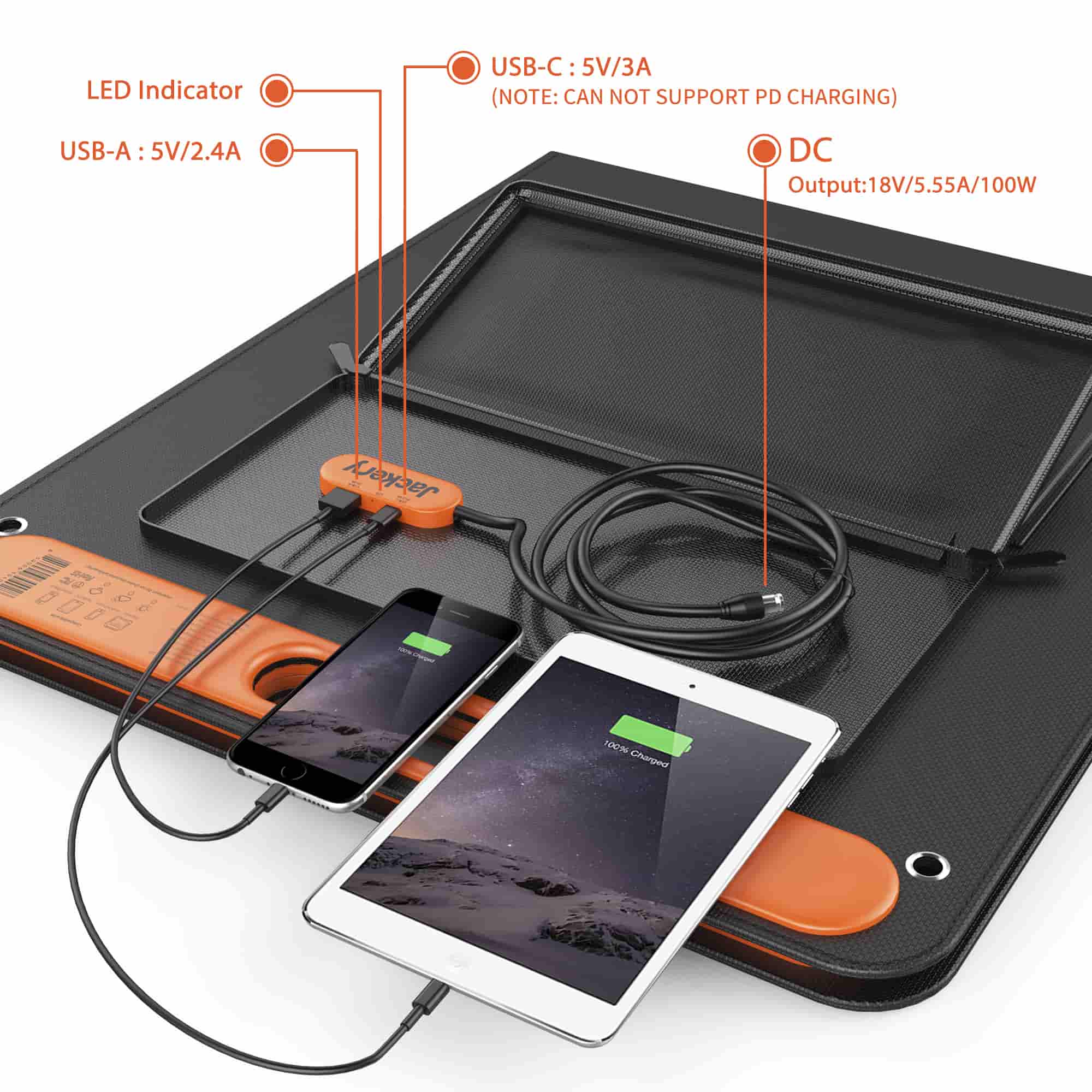

Equipped with 1* USB-C output port and 1* USB-A output port, charging multiple portable devices at the same time.
Lightweight and durable solar panel with kickstand:
Foldable design and weighs only 9.1 lbs. Convenient to carry it wherever you go. Adjust the angle with the built-in kickstand. Made from durable material, high-temperature resistant.

MORE ABOUT SOLARSAGA 100

SolarSaga 100W HIGHLIGHTS

High conversion efficiency solar generator:
High conversion efficiency up to 23%, building a Portable-Solar-Generator System together with Jackery Explorer 1000/500/300/240/160 power station.
Solar charger with USB outputs:
Equipped with 1* USB-C output port and 1* USB-A output port, charging multiple portable devices at the same time.
Lightweight and durable solar panel with kickstand:
Foldable design and weighs only 9.1 lbs. Convenient to carry it wherever you go. Adjust the angle with the built-in kickstand. Made from durable material, high-temperature resistant.

MORE ABOUT SOLARSAGA 100

EXPLORER 500 HIGHLIGHTS

Versatile outdoor power supply: 518Wh/144,400mAh battery capacity, 500W Rated Power and 1000W Surge Power from the pure-sine wave AC port.

All-in-one portable power station: includes three USB ports, AC outlet, and 12V car output. Jackery Explorer 500 provides stable power to mainstream electronics and small appliances, from TVs, projectors to small blenders, etc.
Professional MPPT technology provides faster solar recharge rates. The Explorer 500 can be recharged within 9.5 hours by SolarSaga 100W solar panels.
Portable and compact: Weights only 13.32lbs with an easy-carry handle.

MORE ABOUT EXPLORER 500

SolarSaga 100W HIGHLIGHTS

High conversion efficiency solar generator:
High conversion efficiency up to 23%, building a Portable-Solar-Generator System together with Jackery Explorer 1000/500/300/240/160 power station.
Solar charger with USB outputs:
Equipped with 1* USB-C output port and 1* USB-A output port, charging multiple portable devices at the same time.
Lightweight and durable solar panel with kickstand:
Foldable design and weighs only 9.1 lbs. Convenient to carry it wherever you go. Adjust the angle with the built-in kickstand. Made from durable material, high-temperature resistant.

MORE ABOUT SOLARSAGA 100

GIVE YOUR APPLIANCES MORE RUN TIME

PREPARING YOUR SOLAR GENERATOR

The Explorer 1000 can be fully charged under straight full sun in 9.5 hours by connecting SolarSaga 100W solar panel.

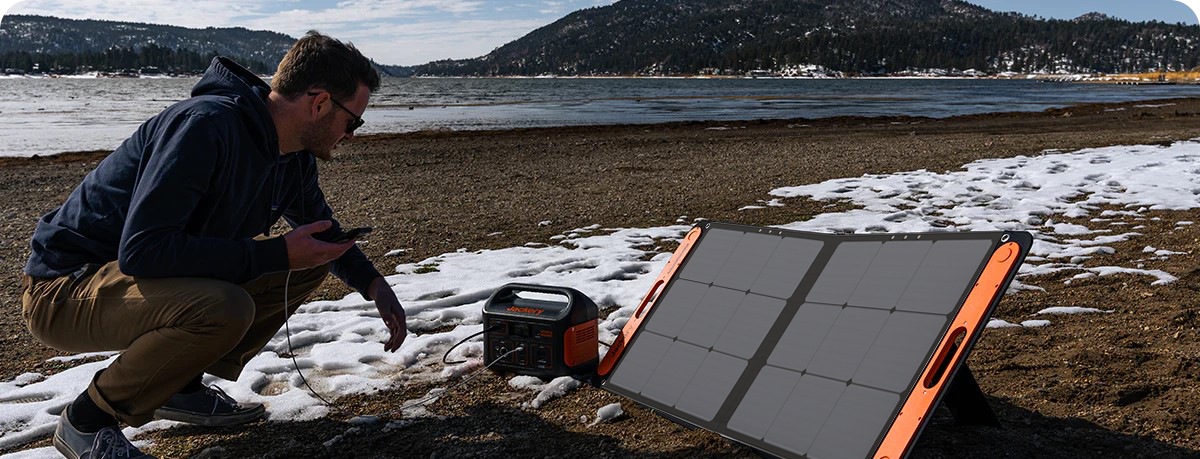

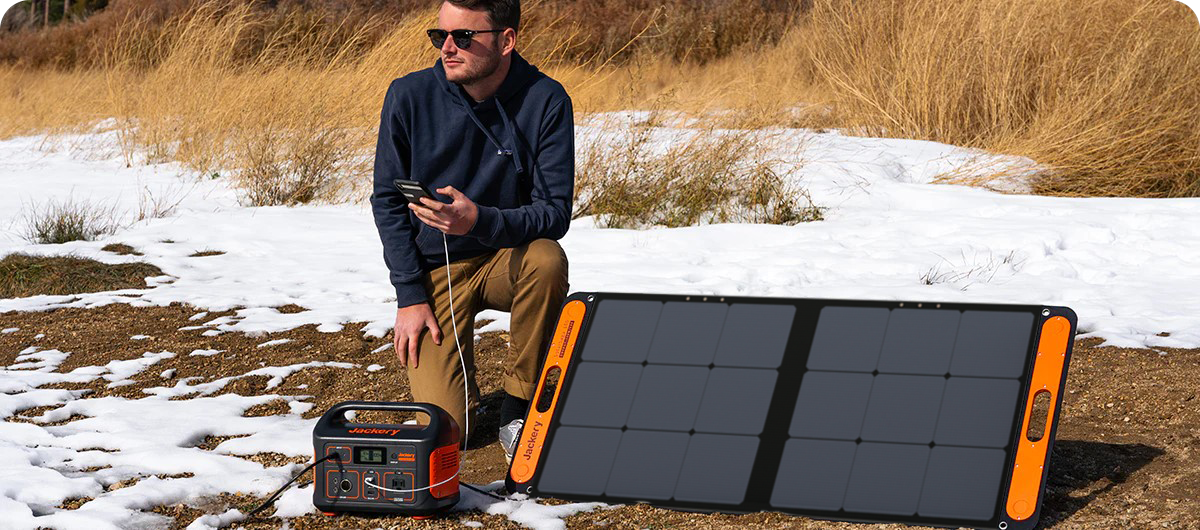

Solar recharging steps:

1. Find the DC interface on the back of SolarSaga 100;

2. Connect the DC interface of SolarSaga 100 with DC input of Explorer 500

Please Mind These While Solar Recharging:

1. Recharging time varies from different location, temperature, weather etc. The actual time may be different.

2. During recharging, keep your portable power station away from heat and direct sunlight in order to extend its life span.

POWER OUTDOORS AND CARE FAMILIES

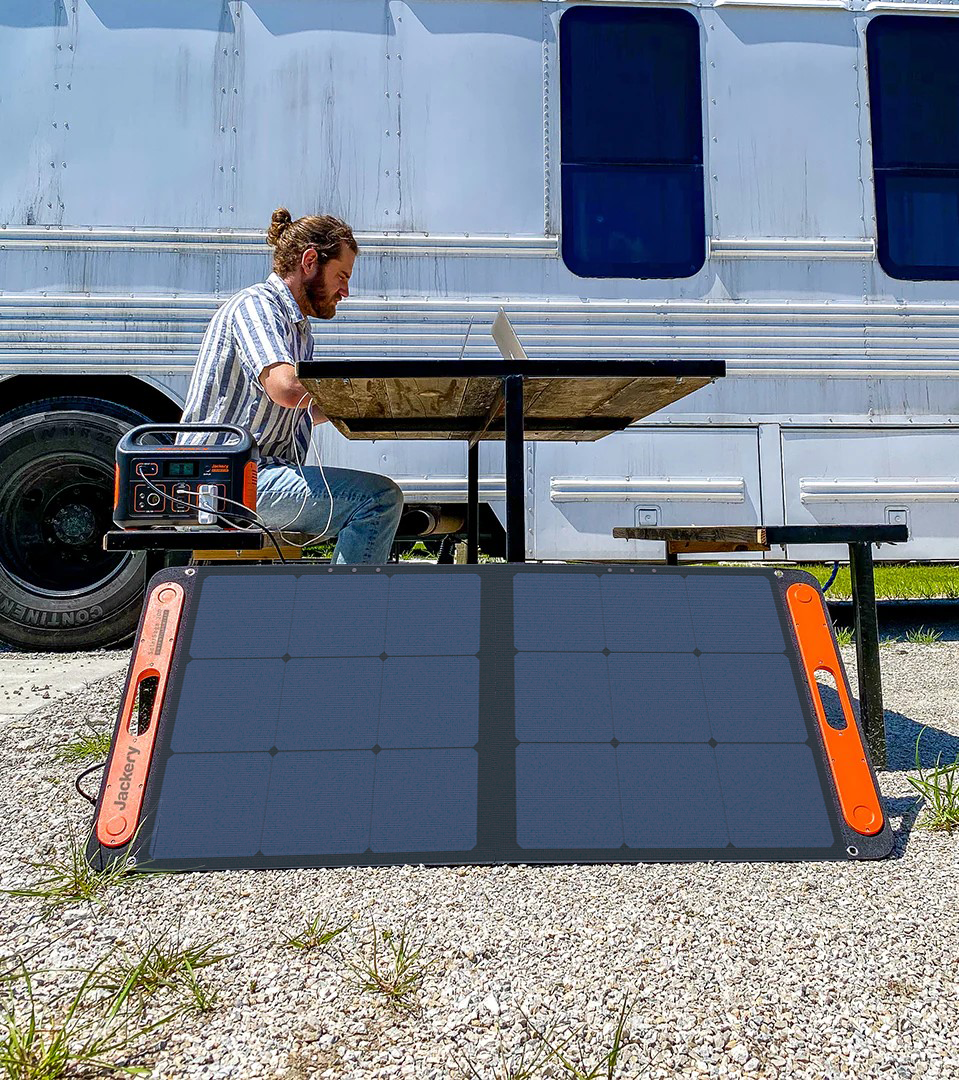

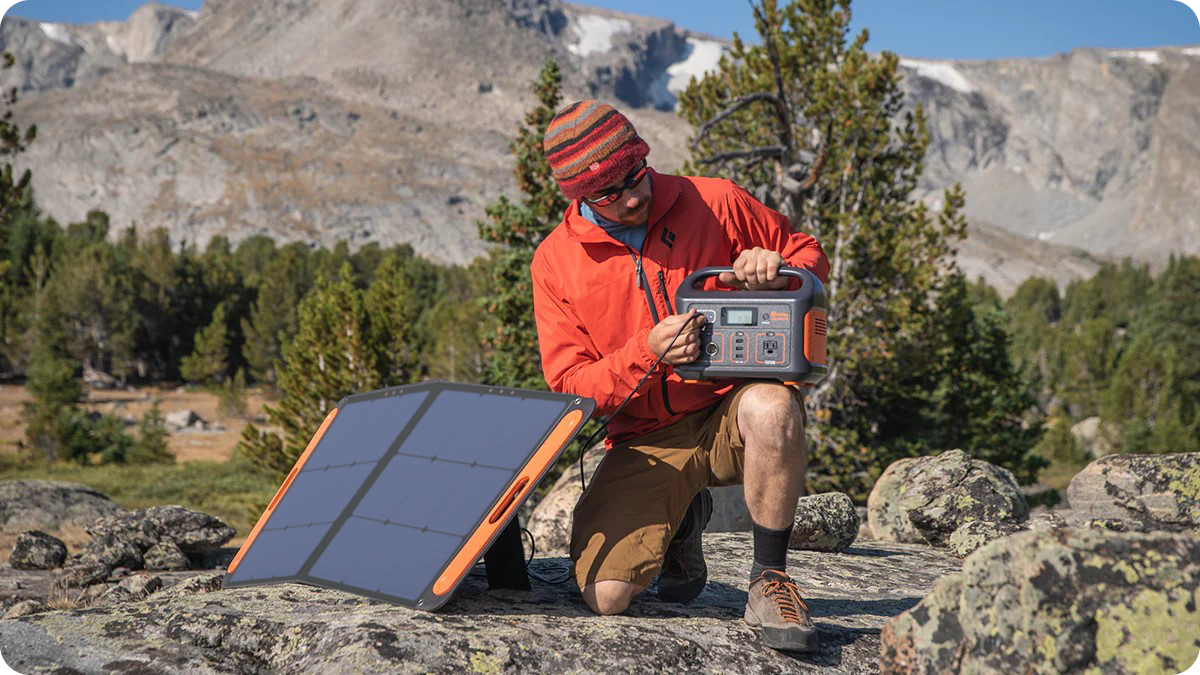

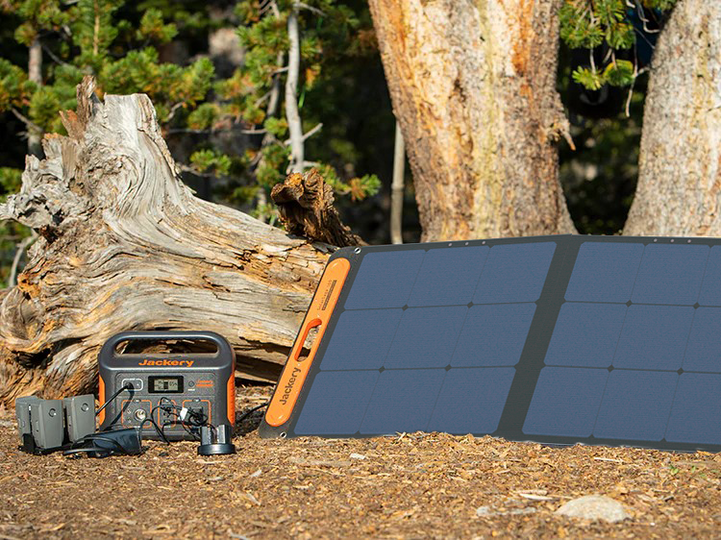

RV CAMPING/FISHING/OFF ROAD/HUNTING/BACKYARD GETAWAY/EMERGENCY

Jackery Explorer 500 + SolarSaga 100W solar generator offers power-to-go, in a compact, lightweight design featuring multiple connections to charge your mainstream gear and more. This solar generator use solar power to charge. You are not tethered by a wire or a plug anywhere – carefree to go explore the great outdoors when you can run your appliances such as blender, pellet smoker, projector and surveying instruments. It can also be used as an emergency backup power supply in the event of a power outage. It can supply power to light your lamps, laptops, phones, small fridges, CPAP, and other devices.

Specifications of Explorer 500

BATTERY INFO

Capacity:

Cell Chemistry:

Lifecycles:

Management System:

518Wh (21.6V, 24Ah)

Li-ion NMC

≥500 cycles to 80%

BMS, Over Voltage Protection, Short Circuit Protection

PORTS

AC Output:

USB-A Output:

Car Output:

DC Output:

DC Input:

110VAC, 60Hz, 500W (1000W Surge)

5V, 2.4A

12V, 10A

12V, 7A

12V-30V (100W Max)

RECHARGE TIMES

AC Adapter:

12V Car Adaptor:

SolarSaga 100W Solar Panel:

7.5 Hours

16 Hours

9.5 Hours

GENERAL

Weight:

Dimensions (LxWxD):

Operating Usage Temperature:

Certification:

Warranty:

Optional Accessory:

13.32 lbs (6.04 kg)

11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

14-104F (-10-40℃)

FCC, ROHS, UN38.3

24 Months

Jackery SolarSaga 100W Solar Panel

BATTERY INFO

Capacity: 518Wh (21.6V, 24Ah)

Cell Chemistry: Li-ion NMC

Lifecycles: ≥500 cycles to 80%

Management System: BMS, Over Voltage Protection, Short Circuit Protection

PORTS

AC Output: 110VAC, 60Hz, 500W (1000W Surge)

USB-A Output: 5V, 2.4A

Car Output: 12V, 10A

DC Output: 12V, 7A

DC Input: 12V-30V (100W Max)

RECHARGE TIMES

AC Adapter: 7.5 Hours

12V Car Adaptor: 16 Hours

SolarSaga 100W Solar Panel: 9.5 Hours

GENERAL

Weight: 13.32 lbs (6.04 kg)

Dimensions (LxWxD): 11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

Operating Usage Temperature: 14-104F (-10-40℃)

Certification: FCC, ROHS, UN38.3

Warranty: 24 Months

Optional Accessory: Jackery SolarSaga 100W Solar Panel

GENERAL

Weight: 13.32 lbs (6.04 kg)

Dimensions (LxWxD): 11.8 x 7.6 x 9.2 in (30.1 x 19.3 x 24.2 cm)

Operating Usage Temperature: 14-104F (-10-40℃)

Certification: FCC, ROHS, UN38.3

Warranty: 24 Months

Optional Accessory: Jackery SolarSaga 100W Solar Panel

Specifications of SolarSaga 100

SOLAR

Peak Power:

Cell Efficiency:

Power Voltage:

Power Current:

Open Circuit Voltage:

Short Circuit Current:

100W

23%

18V

5.55A

21.6V

PORTS

USB-A Output:

USB-C Output:

5V, 2.4A

5V, 3A

GENERAL

Weight:

Dimensions (folded):

Dimensions (unfolded):

Operating Usage Temperature:

Warranty:

10.33 lbs (4.69 kg)

24 x 21 x 1.4 in (610 x 535 x 35 mm)

48 x 21 x 0.2 in (1220 x 535 x 5 mm)

14-149F (-10-65℃)

24 Months

PACKAGE

1*Explorer 500

1*SolarSaga 100

1*User manual

Specifications of SolarSaga 100

SOLAR

Peak Power: 100W

Cell Efficiency: 23%

Power Voltage: 18V

Power Current: 5.55A

Open Circuit Voltage: 21.6V

Short Circuit Current: 6A

PORTS

USB-A Output: 5V, 2.4A

USB-C Output: 5V, 3A

Weight: 10.33 lbs (4.69 kg)

Dimensions (folded): 24 x 21 x 1.4 in (610 x 535 x 35 mm)

Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x 5 mm)

Operating Usage Temperature: 14-149F

(-10-65℃)

Warranty: 24 Months

GENERAL

SOLAR

Peak Power: 100W

Cell Efficiency: 23%

Power Voltage: 18V

Power Current: 5.55A

Open Circuit Voltage: 21.6V

Short Circuit Current: 6A

PORTS

USB-A Output: 5V, 2.4A

USB-C Output: 5V, 3A

GENERAL

Weight: 10.33 lbs (4.69 kg)

Dimensions (folded): 24 x 21 x 1.4 in (610 x535 x 35 mm)

Dimensions (unfolded): 48 x 21 x 0.2 in (1220 x 535 x5mm)

Operating Usage Temperature: 14-149F (-10-65℃)

Warranty: 24 Months

User Manual

Download Explorer 500 Power Station User Manual

Download SolarSaga 100W Solar Panel User Manual

In The Box

Explorer 500

1*Jackery Explorer 500 Portable Power Station (518Wh Portable Power Station)
1*AC Adapter
1* Car Charger Cable
1* User Manual

SolarSaga 100

1* SolarSaga 100 Panel
1*User manual

Explorer 500

1*Jackery Explorer 500 Portable Power Station (518Wh Portable Power Station)
1*AC Adapter
1* Car Charger Cable
1* User Manual

SolarSaga 100

1* SolarSaga 100 Panel
1*User manual

FAQs

Q: What devices can Explorer 500 power?

A: Please note that the AC output port can only charge/power devices that operate at less than 500-Watt. Once exceeding, the Explorer 500 will shut off automatically. Please refer to your device specification before purchase.

Q: How to know the working times for my device?

A: Working time = 500Wh* 0.85 / operating power of your device.

For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 500Wh*0.85/60w=7hrs (rough calculated) .

Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.

Q: How long does it take to full charge this power station?

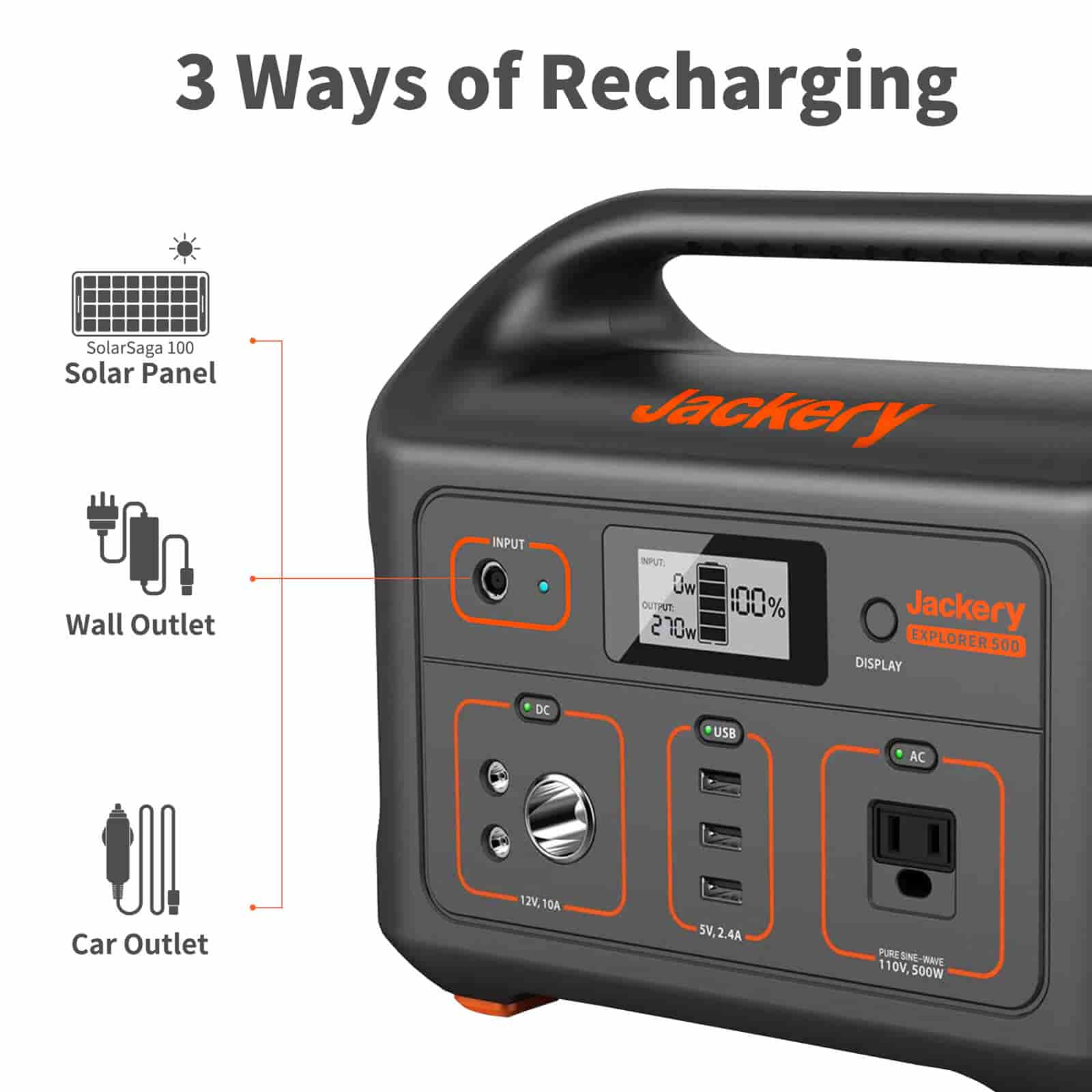

A: Within 7.5 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 16 hours, and around within 9.5 hours from Jackery Saga 100W solar panel (Sold Separately).

Q: How do I know if my Explorer 500 is charged?

A: To check the charge level of the Explorer 500, refer to the LCD Battery Display.

Q: What type of battery is in an Explorer 500?

A: Explorer 500 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.

Q: Is the solar panel waterproof?

A: The Saga 100W is not waterproof. To maximize the lifespan of the module,Please don’t make it get wet.

Q: Why the solar can not produce 100W power when charging to Explorer 1000 power station?

A: As you know , the solar panels are affected by many factors, such as the intensity of the light and the angle of the panel put on the ground. 100W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.

Q: How to clean the solar panel surface?

A: We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.

Q: Can the solar panel charge smartphones and tablet?

A: Yes, the 100W solar panel has 1* USB-C(5V,3A) output port and 1* USB-A(5V, 2.4A) output port.
