Note that the total rated wattage should be under 200W (surge 400W). If the device power is outside this range, the Explorer 290 may shut down.
By constantly monitoring your solar panels' voltage and current output, the built-in MPPT adds up to 23% more solar recharging efficiency.
Please Keep the Following in Mind While Solar Recharging:
1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.
2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.
A battery management system (BMS) enables short circuit protection, voltage control, temperature control, and more advanced safety operations. Other enhanced safety features include:
RV CAMPING/FISHING/OFF ROAD/HUNTING/BACKYARD GETAWAY/EMERGENCY

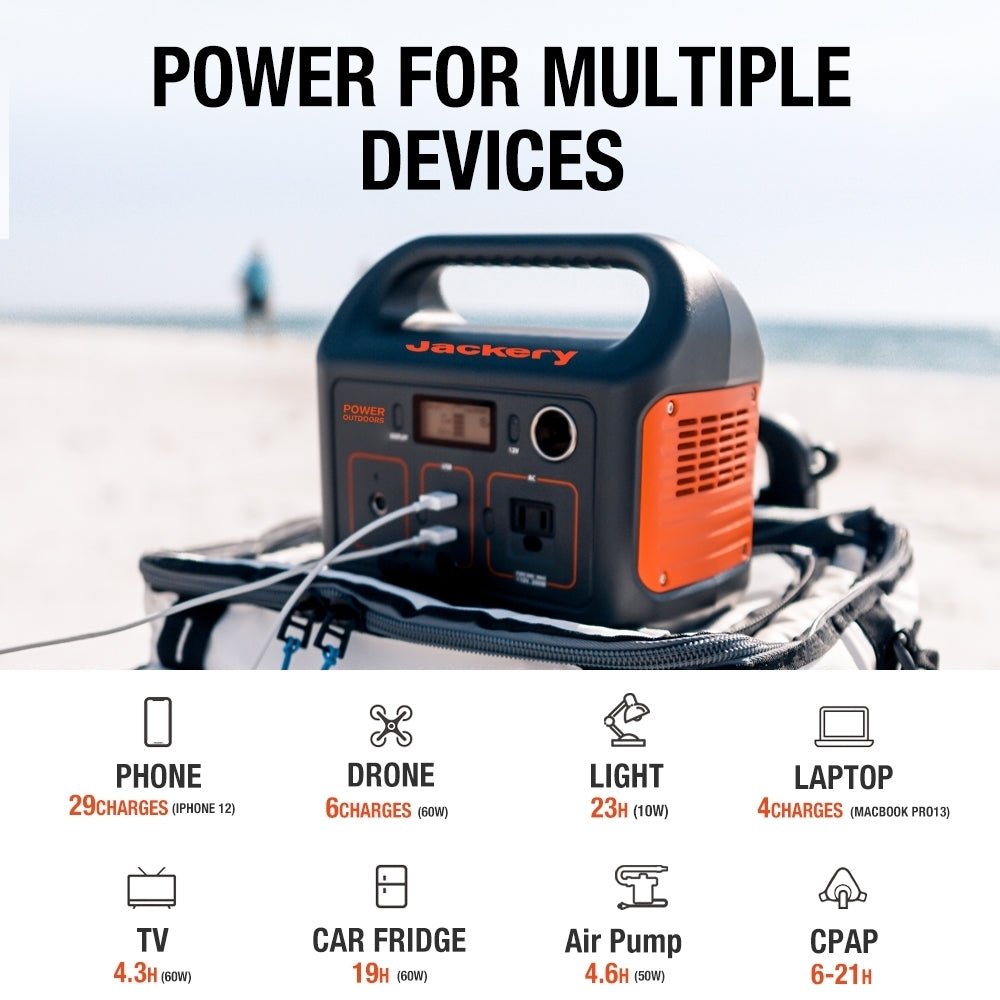

With compact and easy-to-use design, Jackery Explorer 290 is made for when you’re on-the-go and ideal backup power for home and office.It has enough power to run many of your personal electronics such as digital cameras, laptop, drone, mini cooler.
Note that the total rated wattage should be under 200W (surge 400W). If the device power is outside this range, the Explorer 290 may shut down.

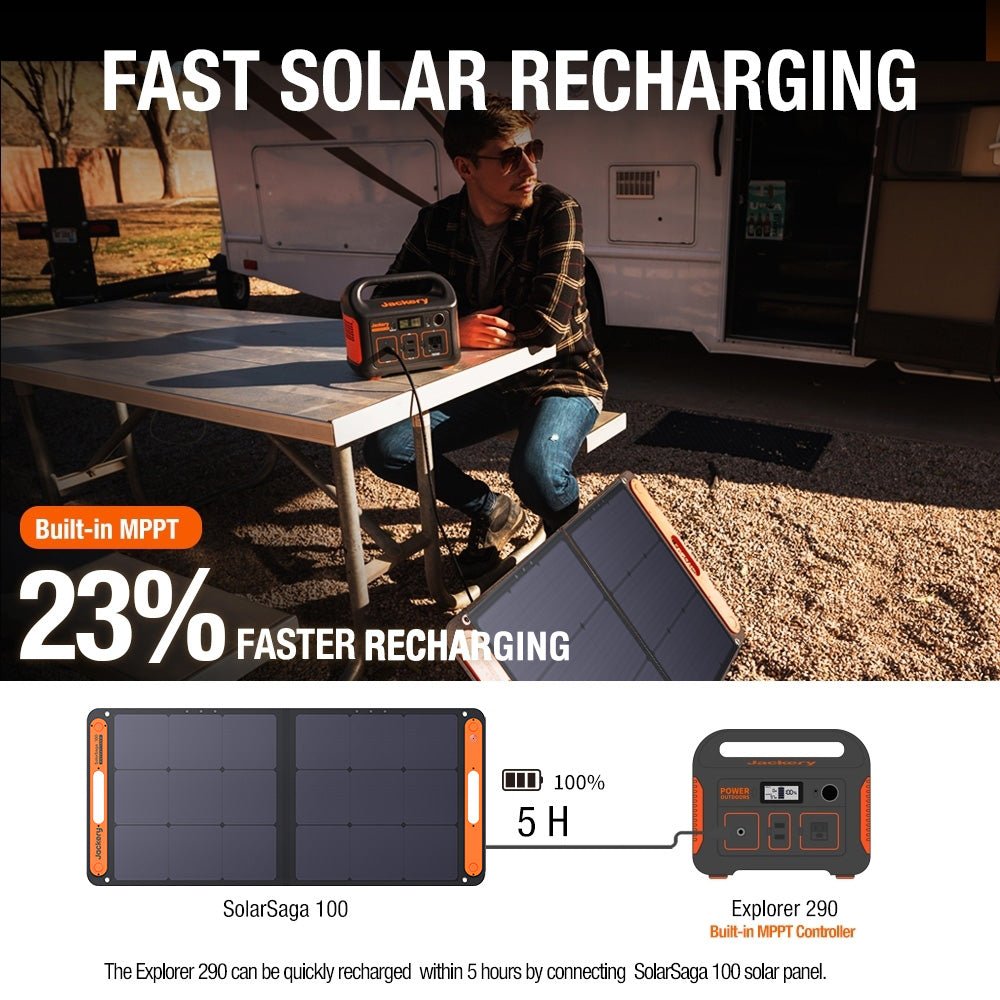

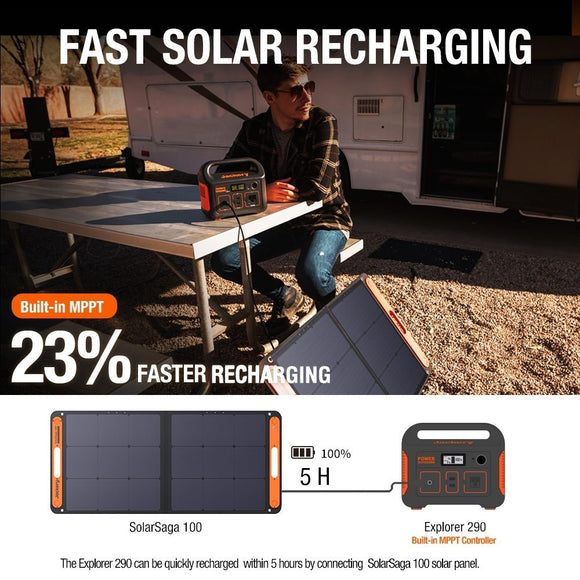

By constantly monitoring your solar panels' voltage and current output, the built-in MPPT adds up to 23% more solar recharging efficiency.
Please Keep the Following in Mind While Solar Recharging:
1. Recharging time varies depending on location, temperature, weather, etc. Therefore, the actual recharge time may be different.
2. Keep your portable power station away from heat and direct sunlight to extend its life span during recharging.
A battery management system (BMS) enables short circuit protection, voltage control, temperature control, and more advanced safety operations. Other enhanced safety features include:
RV CAMPING/FISHING/OFF ROAD/HUNTING/BACKYARD GETAWAY/EMERGENCY

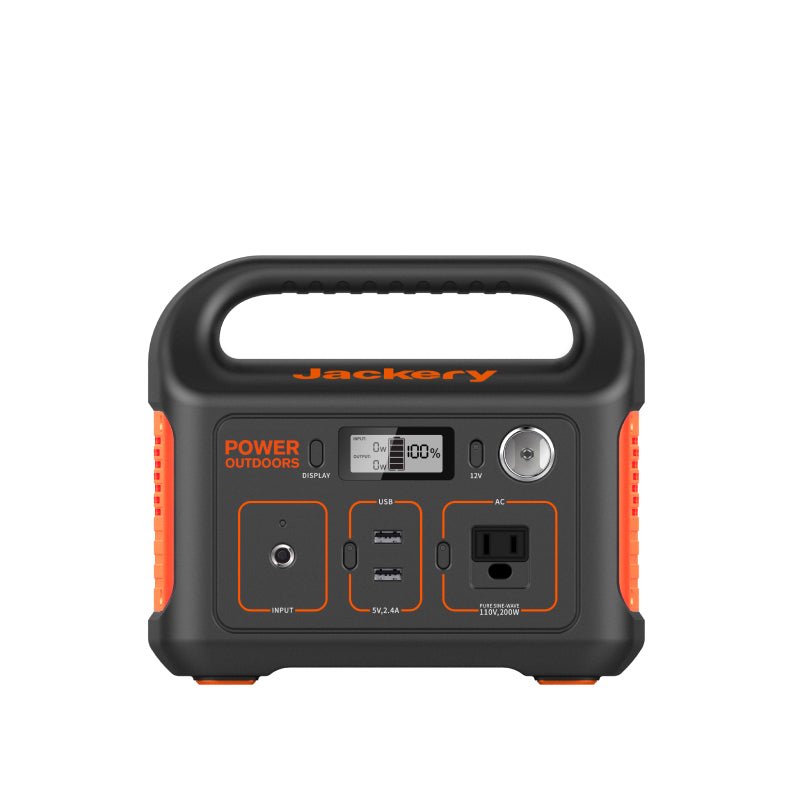

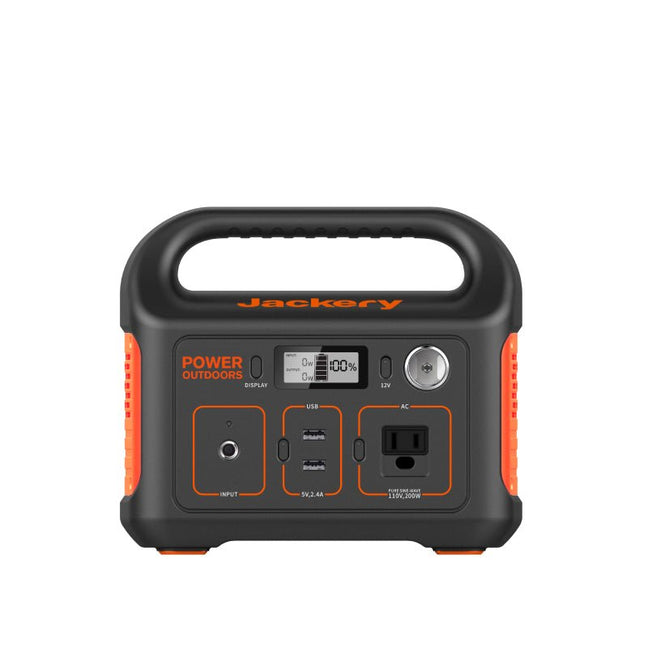

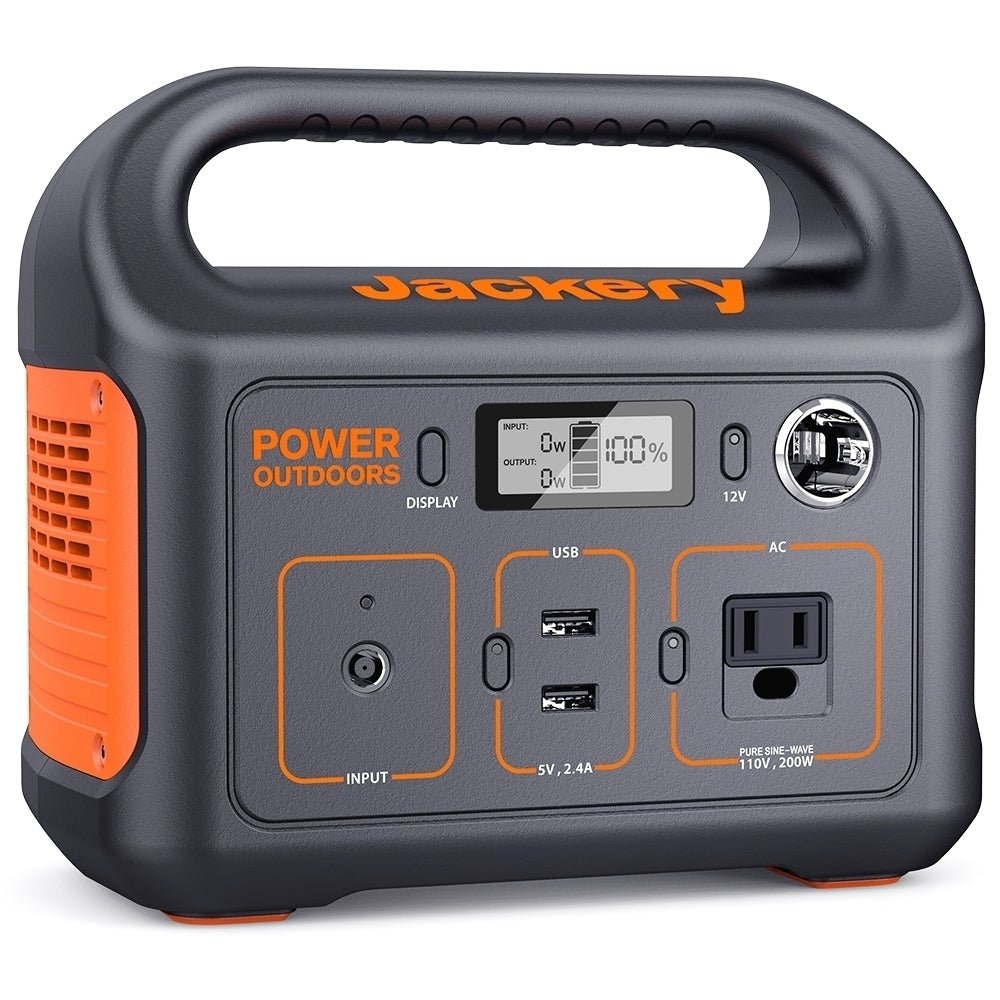

The Jackery Explorer 290 has enough power to run many of your personal electronics such as digital cameras, laptops, drones, mini cooler, and more. It's made for when you're on the go or as ideal backup power for home and office with its compact and easy-to-use design.
Capacity:
Cell Chemistry:
Lifecycles
Management System:
290Wh (14.4V, 20.3Ah)
Li-ion NMC
500 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection
AC Output:
USB-A Output:
Car Output:
DC Input:
110VAC, 60Hz, 200W (400W Surge Peak)
5V, 2.4A
12V, 10A
12V-30V (65W Max)
AC Adapter:
12V Car Adaptor:
SolarSaga 100W Solar Panels:
6 Hours
6.5 Hours
5 Hours
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
Optional Accessory:
7.5 lbs (3.4 kg)
9.1 x 5.2 x 7.7 inches (23 x 13.2 x 19.5 cm)
14-104F (-10-40℃)
FCC, ROHS, UN38.3
24 Months
BATTERY INFO
Capacity:
Cell Chemistry:
Lifecycle:
Management System:
290Wh (14.4V, 20.3Ah)
Li-ion NMC
500 cycles to 80%+ capacity
BMS, Over Voltage Protection, Short Circuit Protection

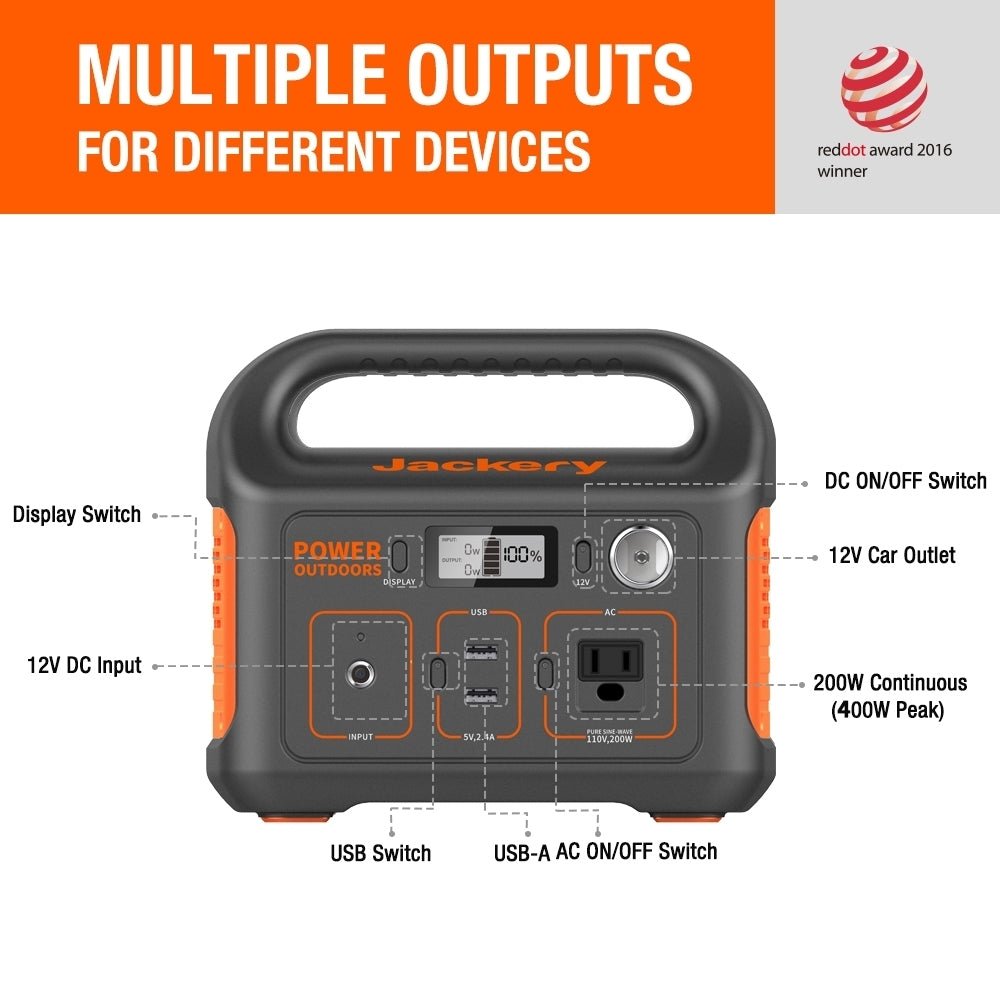

PORTS
AC Output:
USB-A Output:
Car Output:
DC Input:
110VAC, 60Hz, 200W (400W Surge Peak)
5V, 2.4A
12V, 10A
12V-30V (65W Max)
RECHARGE TIMES
AC Adapter:
12V Car Adaptor:
SolarSaga 100W Solar Panels:
6 Hours
6.5 Hours
5 Hours
GENERAL
Weight:
Dimensions (LxWxD):
Operating Usage Temperature:
Certification:
Warranty:
Optional Accessory:
7.5 lbs (3.4 kg)
9.1 x 5.2 x 7.7 inches (23 x 13.32 x 19.5 cm)
14-104F (-10-40℃)
FCC, ROHS, UN38.3
24 Months
Capacity: 290Wh (14.4V, 20.3Ah)
Cell Chemistry: Li-ion NMC
Lifecycles: 500 cycles to 80%+ capacity
Management System: BMS, Over Voltage Protection, Short Circuit Protection
AC Output: 110VAC, 60Hz, 200W (400W Surge Peak)
USB-A Output: 5V, 2.4A
Car Output: 12V, 10A
DC Input: 12V-30V (65W Max)
AC Adapter: 6 Hours
12V Car Adaptor: 6.5Hours
SolarSaga 100W Solar Panel: 5 Hours
Weight: 7.5 lbs (3.4 kg)
Dimensions (LxWxD): 9.1 x 5.2 x 7.7 inches (23 x 13.2 x 19.5 cm)
Operating Usage Temperature: 14-104F (-10-40℃)
Certification: FCC, ROHS, UN38.3
Warranty: 24 Months
Optional Accessory: SolarSaga 100W Solar Panel
A: Please note that the AC output port can only charge/power devices that operate at less than 200-Watt. Once exceeding, the Explorer 290 will shut off automatically. Please refer to your device specification before purchase.
A: Working time = 290Wh* 0.85 / operating power of your device.
For reference, assuming power consumption of your device is 60W (might be a box fan), working time will be 290Wh*0.85/60w=4.1hours (rough calculated) .
Please note: actual power consumption varies from different usages, please consult Jackery for better purchase decision.
A: Within 6 hours from an AC wall outlet; Also another two recharge backup choices for your convenience, recharge from car port around 6.5 hours, and around within 5 hours from Jackery Saga 100W solar panel (Sold Separately).
A: To check the charge level of the Explorer 290, refer to the LCD Battery Display.
A: The Explorer 290 contains a battery pack which consists of an array of cylindri cal 18650 lithium-ion battery cells with high energy density.
