Jackery SolarSaga 100 Prime Solar Panel: Package List, Usage Scenarios, & How to Use

The Jackery SolarSaga 100 Prime Solar Panel is designed for effortless installation on the rooftop of an RV or camper or on balconies. You can mount these flexible solar panels on the roof of an RV or camper to generate reliable power on the move or install them on a balcony at home to capture daily sunlight without taking up much space.

With its patented arc and sturdy design, the Jackery SolarSaga 100 Prime Solar Panel is a practical option for anyone who wants a solar setup that doesn’t need to be folded, moved, or adjusted each time. It features an unshaded front design that ensures optimal sunlight absorption to generate maximum electricity.

What is the Jackery SolarSaga 100 Prime Solar Panel?

The Jackery SolarSaga 100 Prime Solar Panel is an internationally certified, superior DIY solar panel that offers easy setup and portability. Its bifacial energy generation ability increases the power output by 20%. With the 12 pre-drilled holes and sturdy screw mounting, you can easily install the solar panel in one spot, where it can steadily generate clean energy.

The Jackery SolarSaga 100 Prime Solar Panel is particularly useful for RV roofs, camper installations, or balcony solar setups in apartments. It features a patented arc design that not only makes it easier to handle and install but also adds a layer of safety by reducing sharp edges, giving you peace of mind if children are around.

What Does the Jackery SolarSaga 100 Prime Solar Panel Combine?

The Jackery SolarSaga 100 Prime Solar Panel combines efficiency and ease of use in a permanent format. It is made with high-quality monocrystalline cells for better sunlight conversion. It has a sturdy frame to withstand outdoor conditions and is designed for compatibility with the Jackery Portable Power Stations. The solar panel has an IP68 waterproof and dustproof rating, which makes it ideal for harsh weather conditions.

What Does the Jackery SolarSaga 100 Prime Solar Panel Bundle Include?

When you purchase the Jackery SolarSaga 100 Prime Solar Panel bundle, you receive the panel itself along with the necessary connection cables for linking it to compatible Jackery Portable Power Stations and installation. Here's what you will find in the box:

• Jackery SolarSaga 100 Prime Solar Panel × 1
• Anderson to DC8020 Adapter × 1
• User Guide × 1
• Jackery Z Bracket Kit × 1
• Z-Shaped Brackets × 4
• Hex Bolts × 4
• M6 Flat Washers × 4
• M6 Elastic Washers × 4
• M5.5 Hex Flange Self-Tapping Screws With Adhesive × 8
• M6 Nylon Anti-Loosening Flange Units × 4

Note: When you are buying the Jackery Solar Generator bundle, you will receive all the needed connectors and cables.

When to Use the Jackery SolarSaga 100 Prime Solar Panel?

The Jackery SolarSaga 100 Prime Solar Panel is designed to be securely installed, which makes it especially useful for certain long-term applications. Here are some usage scenarios where these solar panels from Jackery are useful:

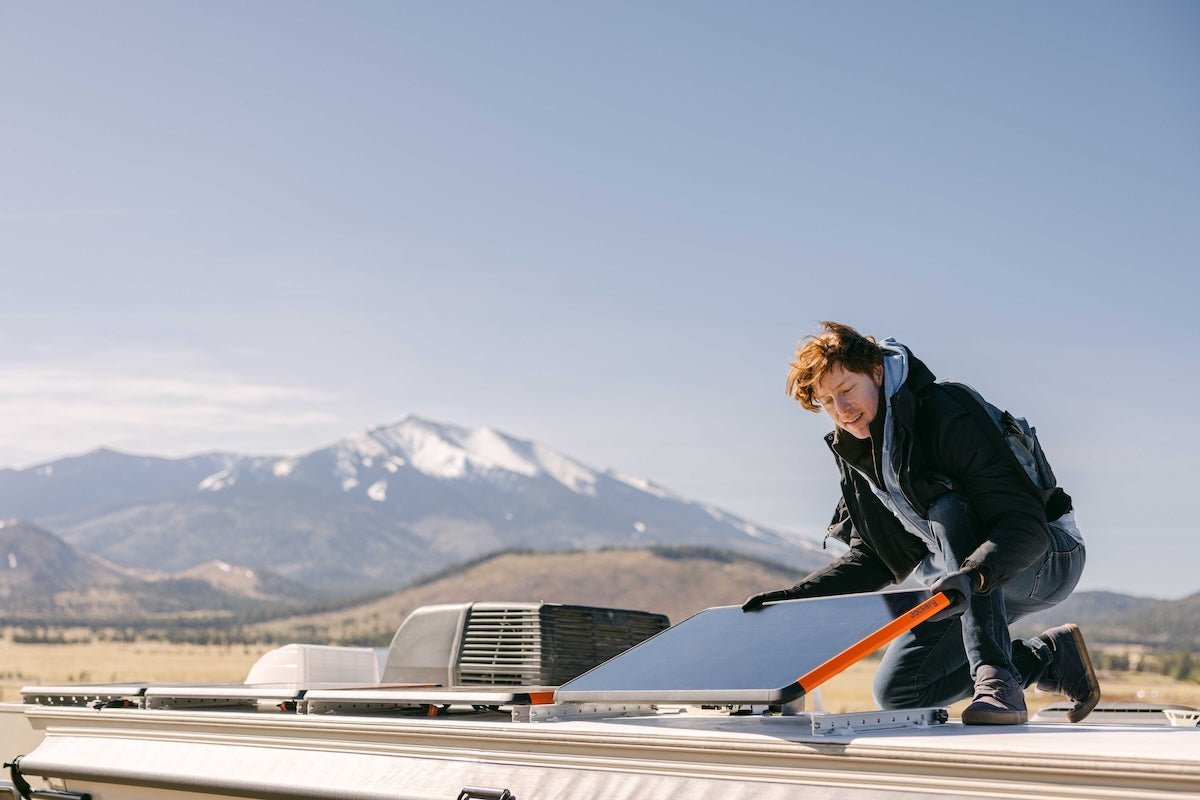

On the RV or Camper Rooftop: Installing the panel on your RV roof ensures you have a steady flow of renewable energy while traveling. Instead of depending on campground hookups or noisy gas generators, the Jackery SolarSaga 100 Prime Solar Panel silently harvests solar power to recharge the power station. The solar generator keeps your appliances, lights, and devices running.

On the Apartment Balcony: For homeowners and apartment dwellers with limited space, the Jackery SolarSaga 100 Prime Solar Panel can be mounted on a balcony railing or wall. This setup allows you to capture sunlight throughout the day and reduce dependency on grid power. It is especially useful for charging portable power stations.

Yachts and Boats: The Jackery SolarSaga 100 Prime Solar Panel is also suitable for marine use. Installed securely on a yacht or boat roof, it captures sunlight while at sea. When paired with the Jackery Explorer 1000 Plus Portable Power Station, it helps power navigation equipment, lighting, and small appliances. This makes it especially valuable for longer trips where access to shore power is limited.

What Are the Specifications of the Jackery SolarSaga 100 Prime Solar Panel?

The Jackery SolarSaga 100 Prime Solar Panel is a 100-watt monocrystalline solar panel designed for fixed installation. It is built with durability in mind, featuring a sturdy frame suitable for rooftops, balconies, and small-scale residential or RV setups. Here are the technical specifications related to the Jackery SolarSaga 100 Prime Solar Panel:

Product	Jackery SolarSaga 100 Prime Solar Panel
Electrical Data	STC	BNPI
Peak Power (Pmax)	100W±5%	108W±5%
Open Circuit Voltage (Voc)	22.7V±5%	23.0V±5%
Short Circuit Current (Isc)	5.53A±5%	5.86A±5%
Power Voltage (Vmp)	18.7V±5%	19.0V±5%
Power Current (Imp)	5.30A±5%	5.62A±5%
Maximum System Voltage	600VDC
Maximum Reverse Current	15A
Protection Class Against Electric Shock	Class II
Waterproof Level	IP68
Operating Temperature Range	-40°C~85°C (-40℉~185℉)
Dimensions	986 x 552 x 29mm (38.8 x 21.7 x 1.1in)
Product Weight	6.0 kg (13.23 lbs)
Bifaciality Coefficient (back/front)	Pmax>65%, Voc>97%, Isc>65%
Voltage Temperature Coefficient	-0.268%/°C
Power Temperature Coefficient	-0.29%/°C

How to Use the Jackery SolarSaga 100 Prime Solar Panel?

Using the Jackery SolarSaga 100 Prime Solar Panel is simple once it is installed. You need to mount the solar panel securely on a flat surface such as an RV roof, balcony, or outdoor space where it receives direct sunlight. Then, connect the panel to your Jackery Portable Power Station using the included cable. Once connected, the solar panel will automatically start charging your power station during daylight hours.

Charging Your RV Battery

The Jackery SolarSaga 100 Prime Solar Panel can be mounted on the rooftop of the RV or camper. Then, connect this solar panel to the MPPT charge controller, which is connected to the RV battery bank for recharging.

Charging Your Power Station

The Jackery SolarSaga 100 Prime Solar Panel can be connected to the Jackery Portable Power Station using the Anderson to DC8020 adapter. This adapter is suitable for the DC input port of the Jackery Portable Power Station with a diameter of 8.1 mm.

You can also check out the user manual to understand how to install the Jackery SolarSaga 100 Prime Solar Panel.

What Are the Compatible Products and Solar Recharging Time?

The Jackery SolarSaga 100 Prime Solar Panel is compatible with many Jackery Portable Power Stations. However, the charging times depend on the number of panels connected, the sunlight conditions, and the power station’s capacity. Here is a table revealing the power stations compatible with the Jackery SolarSaga 100 Prime Solar Panel and their recharging times:

Power Station	Solar Panel	Battery Capacity	Charging Hours
Explorer 100 Plus	Jackery SolarSaga 100 Prime Solar Panel *1	0-80%	1.4H
		0-100%	2.0H
Explorer 240 v2	Jackery SolarSaga 100 Prime Solar Panel *1	0-80%	2.4H
		0-100%	3.3H
Explorer 300 Plus	Jackery SolarSaga 100 Prime Solar Panel *1	0-80%	3.8H
		0-100%	4.6H
Explorer 500	Jackery SolarSaga 100 Prime Solar Panel *1	0-80%	7.5H
		0-100%	9H
Explorer 600 Plus	Jackery SolarSaga 100 Prime Solar Panels *1	0-80%	6.5H
		0-100%	8.5H
	Jackery SolarSaga 100 Prime Solar Panels *2	0-80%	3.5H
		0-100%	4.3H
Explorer 1000 Plus	Jackery SolarSaga 100 Prime Solar Panel *1	0-80%	14H
		0-100%	18H
	Jackery SolarSaga 100 Prime Solar Panels*2	0-80%	7H
		0-100%	9H
	Jackery SolarSaga 100 Prime Solar Panels*3	0-80%	5H
		0-100%	6H
	Jackery SolarSaga 100 Prime Solar Panels*4	0-80%	3.5H
		0-100%	4.5H
	Jackery SolarSaga 100 Prime Solar Panels*6	0-80%	2.5H
		0-100%	3H
Explorer 1000 v2	Jackery SolarSaga 100 Prime Solar Panels*1	0-80%	12H
		0-100%	15H
	Jackery SolarSaga 100 Prime Solar Panels*2	0-80%	6H
		0-100%	8H
	Jackery SolarSaga 100 Prime Solar Panels*3	0-80%	4.3H
		0-100%	5.5H
	Jackery SolarSaga 100 Prime Solar Panels*4	0-80%	3.2H
		0-100%	4H
	Jackery SolarSaga 100 Prime Solar Panels*6	0-80%	2.5H
		0-100%	3H
Explorer 2000  Plus	Jackery SolarSaga 100 Prime Solar Panels*1	0-80%	19H
		0-100%	22.5H
	Jackery SolarSaga 100 Prime Solar Panels*2	0-80%	11H
		0-100%	13H
	Jackery SolarSaga 100 Prime Solar Panels*3	0-80%	8H
		0-100%	9.5H
	Jackery SolarSaga 100 Prime Solar Panels*4	0-80%	6H
		0-100%	7H
	Jackery SolarSaga 100 Prime Solar Panels*6	0-80%	4.5H
		0-100%	5.5H
Explorer 2000 v2	Jackery SolarSaga 100 Prime Solar Panels*1	0-80%	24H
		0-100%	29H
	Jackery SolarSaga 100 Prime Solar Panels*2	0-80%	12H
		0-100%	15H
	Jackery SolarSaga 100 Prime Solar Panels*3	0-80%	8.5H
		0-100%	11H
	Jackery SolarSaga 100 Prime Solar Panels*4	0-80%	6H
		0-100%	7.5H
	Jackery SolarSaga 100 Prime Solar Panels*6	0-80%	5H
		0-100%	6H
Explorer 5000 Plus	Jackery SolarSaga 100 Prime Solar Panels*1	0-80%	56H
		0-100%	70H
	Jackery SolarSaga 100 Prime Solar Panels*2	0-80%	28H
		0-100%	35H
	Jackery SolarSaga 100 Prime Solar Panels*3	0-80%	21H
		0-100%	26H
	Jackery SolarSaga 100 Prime Solar Panels*4	0-80%	14H
		0-100%	17.5H
	Jackery SolarSaga 100 Prime Solar Panels*6	0-80%	9H
		0-100%	12H
