Complete Guide to Jackery DC to DC Alternator Charger

What are the Key Features of the Jackery DC to DC Alternator Charger?

Some key features of the Jackery DC-to-DC Alternator Charger include fast charging, vehicle safety, and reliable performance on the road. It delivers high-speed 600W alternator charging, operates automatically with smart start/stop protection, and works across both 12V and 24V vehicle systems. Here, we will explain all the key features of the Jackery DC to DC Alternator Charger:

Fast and Safe 600W Car Power

The Jackery DC to DC Charger can deliver up to 600W of stable charging power for fast charging without putting strain on your vehicle’s alternator or battery. When you drive for up to 2 hours, it allows you to generate 1kWh of energy. It provides enough power to charge large Jackery Portable Power Stations efficiently while keeping your vehicle safe and balanced throughout the process.

6× Faster Than Cigarette Lighter Ports

Most drivers rely on the 12V cigarette port to charge their portable power stations, but the output is extremely limited. The Jackery DC to DC Alternator Charger is six times faster than cigarette-lighter charging ports, allowing you to charge a 3kWh Jackery Portable Power Station in a 5-6 hour drive. It will help you run fridges, lights, and cooking appliances during your road trips.

Charge While You Drive

As long as your engine is running, your Jackery Portable Power Station charges in the background using the vehicle's unused alternator power. It eliminates the need to look for wall outlets or wait for sunny weather. Whether you are covering long distances between campsites or running short errands around the mountains, every mile becomes a chance to add stored energy, so you arrive at your destination fully powered.

Wide Compatibility for 12V and 24V Vehicles

Whether you are driving a compact van, a standard car, or a large RV, this Jackery DC-to-DC Alternator Charger works with both 12V and 24V systems. It pairs seamlessly with Jackery Portable Power Stations that support DC8020 input, making it a versatile option for anyone living a mobile lifestyle. You only need to install this charger once and get worry-free charging anytime you drive.

Smart Auto Start and Stop Protection

In order to protect your vehicle’s battery, the Jackery DC to DC Alternator Charger uses ACC signal detection and voltage monitoring. It automatically starts charging when the engine runs and shuts off the moment the ignition is turned off. This prevents over-discharge and ensures your starter battery remains healthy and ready to go. It is a useful feature for travelers staying in remote areas.

Which Jackery Power Stations are Compatible with the DC to DC Alternator Charger?

The Jackery DC-to-DC Alternator Charger is compatible with Jackery Portable Power Stations that feature a DC8020 input port. Here is a table revealing the Jackery Portable Power Stations compatible with this charger and the charging times:

Note: The charging times are just for reference, and may vary based on the real-world conditions and the power output.

How Do You Connect and Use the Jackery DC to DC Alternator Charger?

Using the Jackery DC to DC Alternator Charger requires a one-time installation, and once it is set up, it works automatically. Here is how to connect and use the Jackery DC to DC Alternator Charger:

Step 1: Connect the Input Cable to the Vehicle Battery

Start by attaching the OT terminals of the input cable to your vehicle’s battery. Connect the red wire to the positive terminal and the black wire to the negative terminal.

Step 2: Prepare and Connect the ACC Cable

Cut the non-connector end of the ACC cable to expose the copper wire, then connect it to the vehicle’s ACC line so the charger can detect when the ignition is on.

Step 3: Install the Fuse Correctly

Attach the OT terminal of the fuse to the positive end of the 6 m input cable. Follow the required order of the round terminal, washer, lock washer, and nut,  and tighten with a torque of 3–4 N·m.

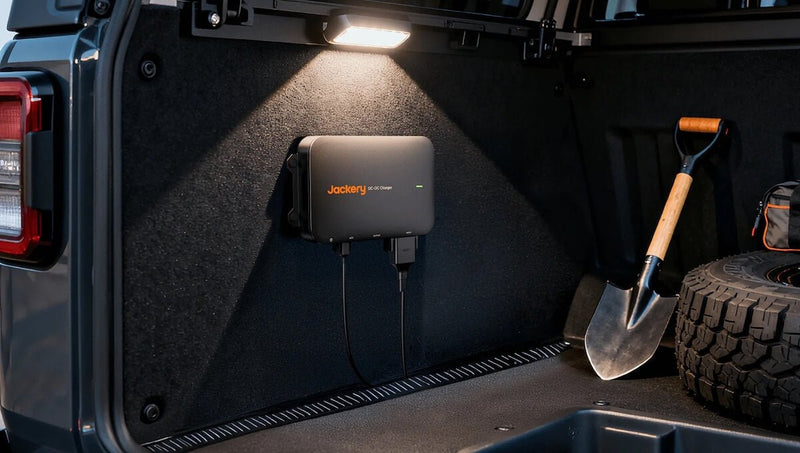

Step 4: Mount the Charger Inside the Vehicle

You can choose your mounting method to mount the Jackery DC to DC Alternator Charger.

Method 1: Mount to the Vehicle Body

Start by marking drilling points. Then, drill holes and secure the charger with self-tapping screws. You should keep 20 cm of clearance on all sides for ventilation.

Method 2: Mount to a Modification Panel

For this, mark drill positions on the modification panel and drill holes. Insert M6 bolts through the charger and into the holes, and tighten the M6 nuts.

Step 5: Connect the Charger Cables

Once the charger is mounted, you can connect the wiring using the Anderson connectors:

• Connect the Anderson connector of the input cable to the charger’s input port.
• Connect the Anderson connector of the ACC cable to the charger’s ACC port.
• Connect the Anderson connector of the output cable to the charger’s output port.
• Connect the DC8020 end of the output cable to the Jackery Portable Power Station.

If you want to understand how to install the charger, you can check out the Jackery DC to DC Alternator Charger's user manual.

Note: We recommend having a professional install the product. Proper wiring ensures safe performance and protects both your vehicle and your power station during long-distance travel.

Conclusion

The Jackery DC to DC Alternator Charger is built for anyone who depends on reliable power while traveling. Whether you are living on the road full-time, exploring national parks, or simply taking long drives between destinations, this charger keeps your Jackery Portable Power Station ready without extra work or waiting for sunlight. Its fast charging speed, smart battery protection, and wide vehicle compatibility make it a practical upgrade for road travelers who want more independence and fewer charging limitations.
